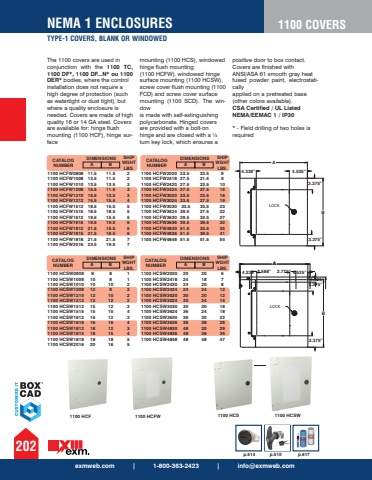

202exmweb.com | 1-800-363-2423 | [email protected] 1 ENCLOSURES 1100 COVERSTYPE-1 COVERS, BLANK OR WINDOWEDp.514 p.510 p.617The 1100 covers are used in conjunction with the 1100 TC, 1100 DF*, 1100 DF...N* ou 1100 DER* bodies, where the control installation does not require a high degree of protection (such as watertight or dust tight), but where a quality enclosure is needed. Covers are made of high quality 16 or 14 GA steel. Covers are available for: hinge flush mounting (1100 HCF), hinge surface mounting (1100 HCS), windowed hinge flush mounting (1100 HCFW), windowed hinge surface mounting (1100 HCSW), screw cover flush mounting (1100 FCD) and screw cover surface mounting (1100 SCD). The window is made with self-extinguishing polycarbonate. Hinged covers are provided with a bolt-on hinge and are closed with a %u00bc turn key lock, which ensures a positive door to box contact. Covers are finished with ANSI/ASA 61 smooth gray heat fused powder paint, electrostatically applied on a pretreated base (other colors available). CSA Certified / UL Listed NEMA/EEMAC 1 / IP30 * - Field drilling of two holes is requiredCATALOG NUMBER A BDIMENSIONS SHIP WGHT LBS.1100 HCFW0808 11.5 11.5 2 1100 HCFW1008 13.5 11.5 2 1100 HCFW1010 13.5 13.5 3 1100 HCFW1208 15.5 11.5 3 1100 HCFW1210 15.5 13.5 3 1100 HCFW1212 15.5 15.5 4 1100 HCFW1512 18.5 15.5 5 1100 HCFW1515 18.5 18.5 5 1100 HCFW1612 19.5 15.5 5 1100 HCFW1616 19.5 19.5 6 1100 HCFW1812 21.5 15.5 5 1100 HCFW1815 21.5 18.5 6 1100 HCFW1818 21.5 21.5 7 1100 HCFW2016 23.5 19.5 7CATALOG NUMBER A BDIMENSIONS SHIP WGHT LBS.1100 HCFW2020 23.5 23.5 9 1100 HCFW2418 27.5 21.5 9 1100 HCFW2420 27.5 23.5 10 1100 HCFW2424 27.5 27.5 15 1100 HCFW3020 33.5 23.5 16 1100 HCFW3024 33.5 27.5 19 1100 HCFW3030 33.5 33.5 23 1100 HCFW3624 39.5 27.5 22 1100 HCFW3630 39.5 33.5 27 1100 HCFW3636 39.5 39.5 32 1100 HCFW4830 51.5 33.5 35 1100 HCFW4836 51.5 39.5 41 1100 HCFW4848 51.5 51.5 54CATALOG NUMBER A BDIMENSIONS SHIP WGHT LBS.1100 HCSW0808 8 8 1 1100 HCSW1008 10 8 1 1100 HCSW1010 10 10 2 1100 HCSW1208 12 8 2 1100 HCSW1210 12 10 2 1100 HCSW1212 12 12 2 1100 HCSW1512 15 12 3 1100 HCSW1515 15 15 4 1100 HCSW1612 16 12 3 1100 HCSW1616 16 16 4 1100 HCSW1812 18 12 3 1100 HCSW1815 18 15 4 1100 HCSW1818 18 18 5 1100 HCSW2016 20 16 5CATALOG NUMBER A BDIMENSIONS SHIP WGHT LBS.1100 HCSW2020 20 20 6 1100 HCSW2418 24 18 7 1100 HCSW2420 24 20 8 1100 HCSW2424 24 24 12 1100 HCSW3020 30 20 12 1100 HCSW3024 30 24 15 1100 HCSW3030 30 30 18 1100 HCSW3624 36 24 18 1100 HCSW3630 36 30 22 1100 HCSW3636 36 36 26 1100 HCSW4830 48 30 29 1100 HCSW4836 48 36 35 1100 HCSW4848 48 48 471100 HCS 1100 HCSWAB4.338%u201d 4.525%u201d3.375%u201d3.375%u201dA2.588%u201d 2.775%u201d1.625%u201dLOCKB4.338%u201d 4.525%u201d3.375%u201d3.375%u201dALOCK1100 HCF 1100 HCFW
