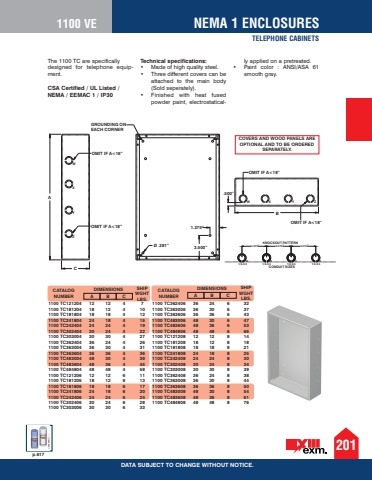

201DATA SUBJECT TO CHANGE WITHOUT NOTICE.1100 VE NEMA 1 ENCLOSURESTELEPHONE CABINETSB1.375%u201d3.500%u201d %u00d8 .281%u201dAGROUNDING ONEACH CORNERCOMIT IF A<18%u201dOMIT IF A<18%u201dWXYZWX Y ZOMIT IF A<18%u201dOMIT IF A<18%u201d.500%u201dCOVERS AND WOOD PANELS ARE OPTIONAL AND TO BE ORDERED SEPARATELY.3.375%u201dW X Y Z3.375%u201d 3.375%u201d KNOCKOUT PATTERNCONDUIT SIZES1/2-3/4 1/2-3/4 1/2-3/4 1/2-3/4The 1100 TC are specifically designed for telephone equipment. CSA Certified / UL Listed / NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality steel. %u2022 Three different covers can be attached to the main body (Sold seperately). %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated. %u2022 Paint color : ANSI/ASA 61 smooth gray.p.6171100 TC121204 12 12 4 7 1100 TC181204 18 12 4 10 1100 TC181804 18 18 4 12 1100 TC241804 24 18 4 15 1100 TC242404 24 24 4 19 1100 TC302404 30 24 4 22 1100 TC303004 30 30 4 27 1100 TC362404 36 24 4 26 1100 TC363004 36 30 4 31 1100 TC363604 36 36 4 36 1100 TC483004 48 30 4 39 1100 TC483604 48 36 4 45 1100 TC484804 48 48 4 58 1100 TC121206 12 12 6 11 1100 TC181206 18 12 6 13 1100 TC181806 18 18 6 17 1100 TC241806 24 18 6 20 1100 TC242406 24 24 6 24 1100 TC302406 30 24 6 28 1100 TC303006 30 30 6 33CATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.1100 TC362406 36 24 6 32 1100 TC363006 36 30 6 37 1100 TC363606 36 36 6 43 1100 TC483006 48 30 6 47 1100 TC483606 48 36 6 53 1100 TC484806 48 48 6 66 1100 TC121208 12 12 8 14 1100 TC181208 18 12 8 18 1100 TC181808 18 18 8 21 1100 TC241808 24 18 8 25 1100 TC242408 24 24 8 30 1100 TC302408 30 24 8 34 1100 TC303008 30 30 8 39 1100 TC362408 36 24 8 38 1100 TC363008 36 30 8 44 1100 TC363608 36 36 8 50 1100 TC483008 48 30 8 54 1100 TC483608 48 36 8 61 1100 TC484808 48 48 8 76CATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.
