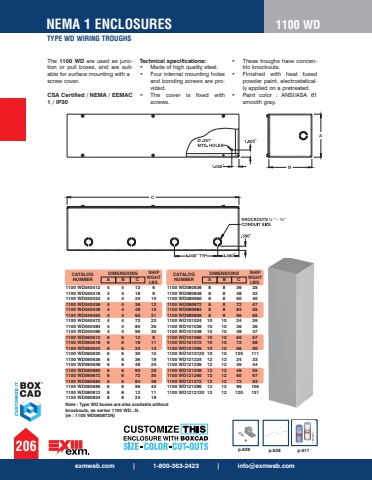

exmweb.com | 1-800-363-2423 | [email protected] 1 ENCLOSURES 1100 WDTYPE WD WIRING TROUGHSp.628 p.628 p.617The 1100 WD are used as junction or pull boxes, and are suitable for surface mounting with a screw cover. CSA Certified / NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality steel. %u2022 Four internal mounting holes and bonding screws are provided. %u2022 The cover is fixed with screws. %u2022 These troughs have concentric knockouts. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated. %u2022 Paint color : ANSI/ASA 61 smooth gray.%u201d %u201d%u201d%u00bd %u201d - %u00be%u201d%u201d%u201d %u201dCATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.1100 WD040412 4 4 12 6 1100 WD040418 4 4 18 8 1100 WD040424 4 4 24 10 1100 WD040436 4 4 36 12 1100 WD040448 4 4 48 15 1100 WD040460 4 4 60 21 1100 WD040472 4 4 72 23 1100 WD040484 4 4 84 26 1100 WD040496 4 4 96 30 1100 WD060612 6 6 12 8 1100 WD060618 6 6 18 11 1100 WD060624 6 6 24 13 1100 WD060630 6 6 30 15 1100 WD060636 6 6 36 19 1100 WD060648 6 6 48 24 1100 WD060660 6 6 60 29 1100 WD060672 6 6 72 35 1100 WD060684 6 6 84 38 1100 WD060696 6 6 96 43 1100 WD080812 8 8 12 11 1100 WD080824 8 8 24 18 CATALOG NUMBER A B CDIMENSIONS SHIP WGHT LBS.1100 WD080836 8 8 36 25 1100 WD080848 8 8 48 32 1100 WD080860 8 8 60 40 1100 WD080872 8 8 72 47 1100 WD080884 8 8 84 55 1100 WD080896 8 8 96 65 1100 WD101024 10 10 24 26 1100 WD101036 10 10 36 36 1100 WD101048 10 10 48 47 1100 WD101060 10 10 60 57 1100 WD101072 10 10 72 68 1100 WD101096 10 10 96 90 1100 WD1010120 10 10 120 111 1100 WD121224 12 12 24 33 1100 WD121236 12 12 36 44 1100 WD121248 12 12 48 55 1100 WD121260 12 12 60 67 1100 WD121272 12 12 72 83 1100 WD121296 12 12 96 106 1100 WD1212120 12 12 120 131 Note : Type WD boxes are also available without knockouts, as series 1100 WD...N. (ie : 1100 WD080872N)
