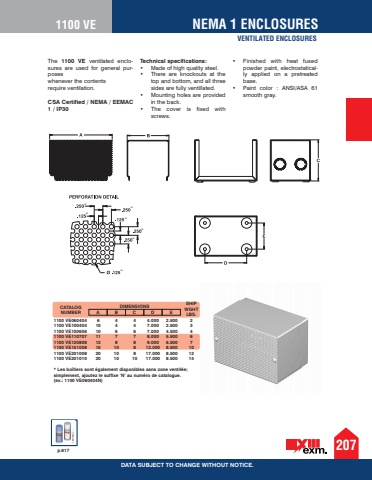

2071100 VEDATA SUBJECT TO CHANGE WITHOUT NOTICE.NEMA 1 ENCLOSURESVENTILATED ENCLOSURESThe 1100 VE ventilated enclosures are used for general purposes whenever the contents require ventilation. CSA Certified / NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality steel. %u2022 There are knockouts at the top and bottom, and all three sides are fully ventillated. %u2022 Mounting holes are provided in the back. %u2022 The cover is fixed with screws. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.%u201d%u201d%u201d%u201d%u201d%u201d%u201d1100 VE060404 6 4 4 4.000 2.500 2 1100 VE100404 10 4 4 7.000 2.500 3 1100 VE100606 10 6 6 7.000 4.500 4 1100 VE110707 11 7 7 8.000 5.500 6 1100 VE120808 12 8 8 9.000 6.500 7 1100 VE151008 15 10 8 12.000 8.500 10 1100 VE201008 20 10 8 17.000 8.500 12 1100 VE201010 20 10 10 17.000 8.500 14 * Les bo%u00eetiers sont %u00e9galement disponibles sans zone ventil%u00e9e; simplement, ajoutez le suffixe %u2018N%u2019 au num%u00e9ro de catalogue. (ex.: 1100 VE060404N)CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.p.617
