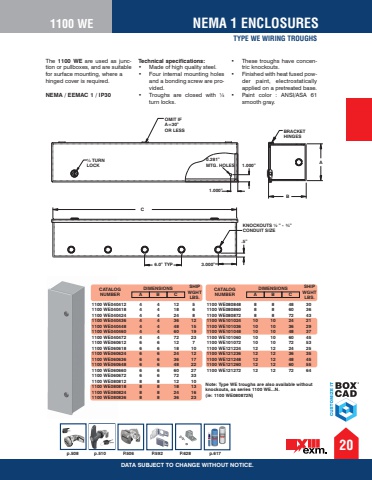

20DATA SUBJECT TO CHANGE WITHOUT NOTICE.1100 WE NEMA 1 ENCLOSURESP.506 P.592 P.6281.000%u201d%u00bc TURNLOCKBRACKETHINGESC0.281%u201dMTG. HOLES AOMIT IFA=30%u201dOR LESS1.000%u201dB6.0%u201d TYP.5%u201d3.000%u201dKNOCKOUTS %u00bd %u201d - %u00be%u201dCONDUIT SIZEThe 1100 WE are used as junction or pullboxes, and are suitable for surface mounting, where a hinged cover is required. NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality steel. %u2022 Four internal mounting holes and a bonding screw are provided. %u2022 Troughs are closed with %u00bc turn locks. %u2022 These troughs have concentric knockouts. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.TYPE WE WIRING TROUGHSCATALOG NUMBERDIMENSIONS SHIP WGHT LBS.1100 WE080848 8 8 48 30 1100 WE080860 8 8 60 36 1100 WE080872 8 8 72 43 1100 WE101024 10 10 24 21 1100 WE101036 10 10 36 29 1100 WE101048 10 10 48 37 1100 WE101060 10 10 60 45 1100 WE101072 10 10 72 53 1100 WE121224 12 12 24 25 1100 WE121236 12 12 36 35 1100 WE121248 12 12 48 45 1100 WE121260 12 12 60 55 1100 WE121272 12 12 72 64 A B CCATALOG NUMBERDIMENSIONS SHIP WGHT LBS.1100 WE040412 4 4 12 5 1100 WE040418 4 4 18 6 1100 WE040424 4 4 24 8 1100 WE040436 4 4 36 12 1100 WE040448 4 4 48 15 1100 WE040460 4 4 60 19 1100 WE040472 4 4 72 23 1100 WE060612 6 6 12 7 1100 WE060618 6 6 18 10 1100 WE060624 6 6 24 12 1100 WE060636 6 6 36 17 1100 WE060648 6 6 48 22 1100 WE060660 6 6 60 27 1100 WE060672 6 6 72 33 1100 WE080812 8 8 12 10 1100 WE080818 8 8 18 13 1100 WE080824 8 8 24 16 1100 WE080836 8 8 36 23 A B CNote: Type WE troughs are also available without knockouts, as series 1100 WE...N. (ie: 1100 WE080872N)p.508 p.510 p.617
