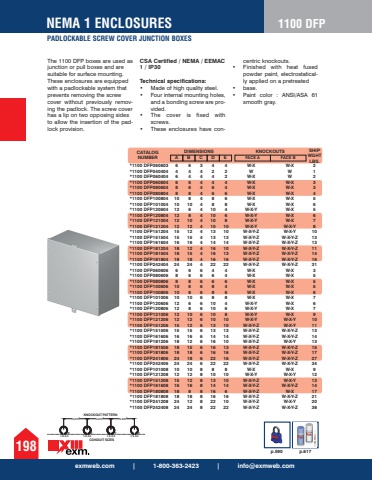

3.375%u201dW X Y Z3.375%u201d 3.375%u201d KNOCKOUT PATTERNCONDUIT SIZES1/2-3/4 1/2-3/4 1/2-3/4 1/2-3/4exmweb.com | 1-800-363-2423 | [email protected] 1 ENCLOSURES 1100 DFPPADLOCKABLE SCREW COVER JUNCTION BOXESThe 1100 DFP boxes are used as junction or pull boxes and are suitable for surface mounting. These enclosures are equipped with a padlockable system that prevents removing the screw cover without previously removing the padlock. The screw cover has a lip on two opposing sides to allow the insertion of the padlock provision. CSA Certified / NEMA / EEMAC 1 / IP30 Technical specifications:%u2022 Made of high quality steel. %u2022 Four internal mounting holes, and a bonding screw are provided. %u2022 The cover is fixed with screws. %u2022 These enclosures have concentric knockouts. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated %u2022 base. %u2022 Paint color : ANSI/ASA 61 smooth gray.p.590 p.617CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.FACE A FACE B*1100 DFP060603 6 6 3 4 4 W-X W-X 2 *1100 DFP040404 4 4 4 2 2 W W 1 *1100 DFP060404 6 4 4 4 2 W-X W 2 *1100 DFP060604 6 6 4 4 4 W-X W-X 3 *1100 DFP080604 8 6 4 6 4 W-X W-X 3 *1100 DFP080804 8 8 4 6 6 W-X W-X 4 *1100 DFP100804 10 8 4 8 6 W-X W-X 5 *1100 DFP101004 10 10 4 8 8 W-X W-X 6 *1100 DFP120604 12 6 4 10 4 W-X-Y W-X 5 *1100 DFP120804 12 8 4 10 6 W-X-Y W-X 6 *1100 DFP121004 12 10 4 10 8 W-X-Y W-X 7 *1100 DFP121204 12 12 4 10 10 W-X-Y W-X-Y 8 *1100 DFP151204 15 12 4 13 10 W-X-Y-Z W-X-Y 10 *1100 DFP151504 15 15 4 13 13 W-X-Y-Z W-X-Y-Z 13 *1100 DFP161604 16 16 4 14 14 W-X-Y-Z W-X-Y-Z 13 *1100 DFP181204 18 12 4 16 10 W-X-Y-Z W-X-Y-Z 11 *1100 DFP181504 18 15 4 16 13 W-X-Y-Z W-X-Y-Z 14 *1100 DFP181804 18 18 4 16 16 W-X-Y-Z W-X-Y-Z 16 *1100 DFP242404 24 24 4 22 22 W-X-Y-Z W-X-Y-Z 31 *1100 DFP060606 6 6 6 4 4 W-X W-X 3 *1100 DFP080606 8 6 6 6 4 W-X W-X 5 *1100 DFP080806 8 8 6 6 6 W-X W-X 5 *1100 DFP100606 10 6 6 8 4 W-X W-X 5 *1100 DFP100806 10 8 6 8 6 W-X W-X 6 *1100 DFP101006 10 10 6 8 8 W-X W-X 7 *1100 DFP120606 12 6 6 10 4 W-X-Y W-X 6 *1100 DFP120806 12 8 6 10 6 W-X-Y W-X 7 *1100 DFP121006 12 10 6 10 8 W-X-Y W-X 9 *1100 DFP121206 12 12 6 10 10 W-X-Y W-X-Y 10 *1100 DFP151206 15 12 6 13 10 W-X-Y-Z W-X-Y 11 *1100 DFP151506 15 15 6 13 13 W-X-Y-Z W-X-Y-Z 13 *1100 DFP161606 16 16 6 14 14 W-X-Y-Z W-X-Y-Z 14 *1100 DFP181206 18 12 6 16 10 W-X-Y-Z W-X-Y 13 *1100 DFP181506 18 15 6 16 13 W-X-Y-Z W-X-Y-Z 15 *1100 DFP181806 18 18 6 16 16 W-X-Y-Z W-X-Y-Z 17 *1100 DFP241806 24 18 6 22 16 W-X-Y-Z W-X-Y-Z 27 *1100 DFP242406 24 24 6 22 22 W-X-Y-Z W-X-Y-Z 34 *1100 DFP101008 10 10 8 8 8 W-X W-X 9 *1100 DFP121208 12 12 8 10 10 W-X-Y W-X-Y 12 *1100 DFP151208 15 12 8 13 10 W-X-Y-Z W-X-Y 13 *1100 DFP161608 16 16 8 14 14 W-X-Y-Z W-X-Y-Z 14 *1100 DFP180808 18 8 8 16 6 W-X-Y-Z W-X 17 *1100 DFP181808 18 18 8 16 16 W-X-Y-Z W-X-Y-Z 21 *1100 DFP241208 24 12 8 22 10 W-X-Y-Z W-X-Y 20 *1100 DFP242408 24 24 8 22 22 W-X-Y-Z W-X-Y-Z 38 KNOCKOUTS
