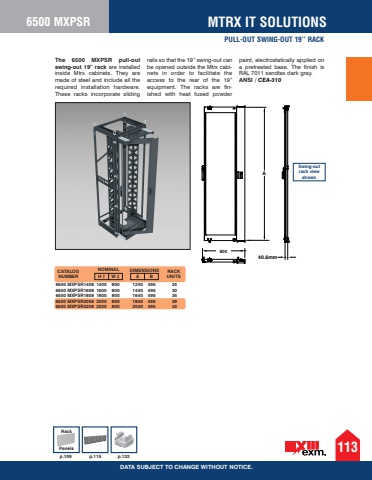

p.109 p.115 p.132Rack Panels 113MTRX IT SOLUTIONSDATA SUBJECT TO CHANGE WITHOUT NOTICE.PULL-OUT SWING-OUT 19%u2019%u2019 RACK6500 MXPSRThe 6500 MXPSR pull-out swing-out 19%u201d rack are installed inside Mtrx cabinets. They are made of steel and include all the required installation hardware. These racks incorporate sliding rails so that the 19%u201d swing-out can be opened outside the Mtrx cabinets in order to facilitate the access to the rear of the 19%u201d equipment. The racks are finished with heat fused powder paint, electrostatically applied on a pretreated base. The finish is RAL 7011 sandtex dark gray. ANSI / CEA-310AB40.6mmDIMENSIONS6500 MXPSR1408 1400 800 1240 495 24 6500 MXPSR1608 1600 800 1440 495 30 6500 MXPSR1808 1800 800 1640 495 34 6500 MXPSR2008 2000 800 1840 495 39 6500 MXPSR2208 2200 800 2040 495 43 H %u2020 W %u2021 A BCATALOG NOMINALNUMBERRACK UNITSSwing-out rack view shown800
