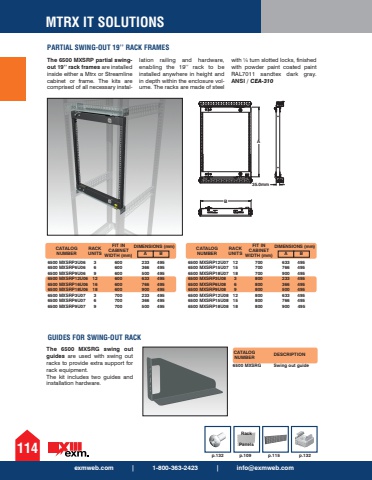

p.132 p.109 p.115 p.132Rack Panelsexmweb.com | 1-800-363-2423 | [email protected] IT SOLUTIONS1146500 MXSRP3U06 6500 MXSRP6U06 6500 MXSRP9U06 6500 MXSRP12U06 6500 MXSRP16U06 6500 MXSRP18U06 6500 MXSRP3U07 6500 MXSRP6U07 6500 MXSRP9U07 3 6 9 12 16 18 3 6 9 600 600 600 600 600 600 700 700 700 233 495 366 495 500 495 633 495 766 495 900 495 233 495 366 495 500 495CATALOG NUMBERRACK UNITSFIT IN CABINET WIDTH (mm)The 6500 MXSRP partial swingout 19%u2019%u2019 rack frames are installed inside either a Mtrx or Streamline cabinet or frame. The kits are comprised of all necessary installation railing and hardware, enabling the 19%u2019%u2019 rack to be installed anywhere in height and in depth within the enclosure volume. The racks are made of steel with %u00bc turn slotted locks, finished with powder paint coated paint RAL7011 sandtex dark gray. ANSI / CEA-310A BDIMENSIONS (mm) 6500 MXSRP12U07 6500 MXSRP15U07 6500 MXSRP18U07 6500 MXSRP3U08 6500 MXSRP6U08 6500 MXSRP9U08 6500 MXSRP12U08 6500 MXSRP15U08 6500 MXSRP18U08 12 15 18 3 6 9 12 15 18 700 700 700 800 800 800 800 800 800 633 495 766 495 900 495 233 495 366 495 500 495 633 495 766 495 900 495CATALOG NUMBERRACK UNITSFIT IN CABINET WIDTH (mm) A BDIMENSIONS (mm) The 6500 MXSRG swing out guides are used with swing out racks to provide extra support for rack equipment. The kit includes two guides and installation hardware.CATALOG NUMBER6500 MXSRG Swing out guideDESCRIPTIONPARTIAL SWING-OUT 19%u2019%u2019 RACK FRAMESGUIDES FOR SWING-OUT RACKA35.0mmB
