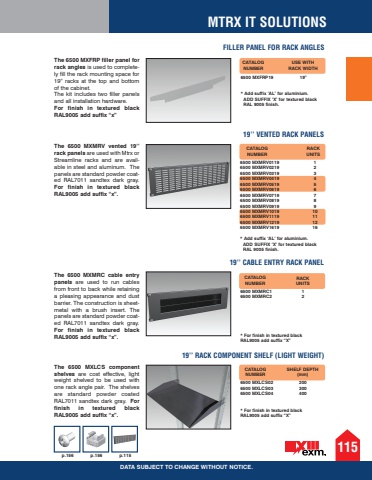

p.156 p.156 p.115115MTRX IT SOLUTIONSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXFRP filler panel for rack angles is used to completely fill the rack mounting space for 19%u201d racks at the top and bottom of the cabinet. The kit includes two filler panels and all installation hardware. For finish in textured black RAL9005 add suffix %u201cx%u201dCATALOG NUMBERUSE WITH RACK WIDTH6500 MXFRP19 19%u201d * Add suffix %u2018AL%u2019 for aluminium. ADD SUFFIX %u2018X%u2019 for textured black RAL 9005 finish.The 6500 MXMRV vented 19%u2019%u2019 rack panels are used with Mtrx or Streamline racks and are available in steel and aluminum. The panels are standard powder coated RAL7011 sandtex dark gray. For finish in textured black RAL9005 add suffix %u201cx%u201d. The 6500 MXMRC cable entry panels are used to run cables from front to back while retaining a pleasing appearance and dust barrier. The construction is sheetmetal with a brush insert. The panels are standard powder coated RAL7011 sandtex dark gray. For finish in textured black RAL9005 add suffix %u201cx%u201d. CATALOG NUMBER6500 MXMRC1 1 6500 MXMRC2 2 * For finish in textured black RAL9005 add suffix %u201cX%u201dRACK UNITSThe 6500 MXLCS component shelves are cost effective, light weight shelved to be used with one rack angle pair. The shelves are standard powder coated RAL7011 sandtex dark gray. For finish in textured black RAL9005 add suffix %u201cx%u201d. CATALOG NUMBER6500 MXLCS02 200 6500 MXLCS03 300 6500 MXLCS04 400 * For finish in textured black RAL9005 add suffix %u201cX%u201dSHELF DEPTH (mm)CATALOG NUMBER6500 MXMRV0119 1 6500 MXMRV0219 2 6500 MXMRV0319 3 6500 MXMRV0419 4 6500 MXMRV0519 5 6500 MXMRV0619 6 6500 MXMRV0719 7 6500 MXMRV0819 8 6500 MXMRV0919 9 6500 MXMRV1019 10 6500 MXMRV1119 11 6500 MXMRV1219 12 6500 MXMRV1619 16 * Add suffix %u2018AL%u2019 for aluminium. ADD SUFFIX %u2018X%u2019 for textured black RAL 9005 finish.RACK UNITSFILLER PANEL FOR RACK ANGLES19%u2019%u2019 VENTED RACK PANELS19%u2019%u2019 CABLE ENTRY RACK PANEL19%u2019%u2019 RACK COMPONENT SHELF (LIGHT WEIGHT)
