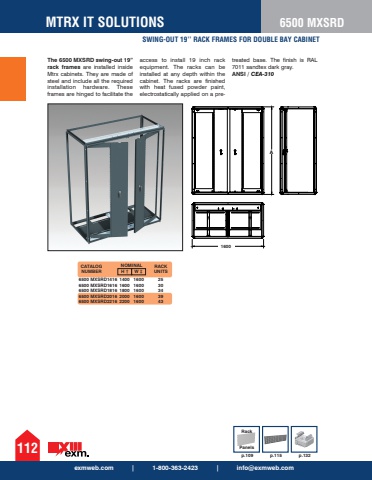

p.109 p.115 p.132Rack Panelsexmweb.com | 1-800-363-2423 | [email protected] IT SOLUTIONS112SWING-OUT 19%u2019%u2019 RACK FRAMES FOR DOUBLE BAY CABINET6500 MXSRDThe 6500 MXSRD swing-out 19%u201d rack frames are installed inside Mtrx cabinets. They are made of steel and include all the required installation hardware. These frames are hinged to facilitate the access to install 19 inch rack equipment. The racks can be installed at any depth within the cabinet. The racks are finished with heat fused powder paint, electrostatically applied on a pretreated base. The finish is RAL 7011 sandtex dark gray. ANSI / CEA-310AB6500 MXSRD1416 1400 1600 25 6500 MXSRD1616 1600 1600 30 6500 MXSRD1816 1800 1600 34 6500 MXSRD2016 2000 1600 39 6500 MXSRD2216 2200 1600 43 H %u2020 W %u2021CATALOG NOMINALNUMBERRACK UNITS1600
