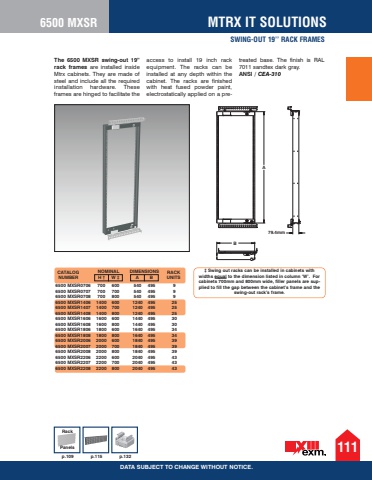

p.109 p.115 p.132Rack Panels 1116500 MXSR MTRX IT SOLUTIONSDATA SUBJECT TO CHANGE WITHOUT NOTICE.SWING-OUT 19%u2019%u2019 RACK FRAMESThe 6500 MXSR swing-out 19%u201d rack frames are installed inside Mtrx cabinets. They are made of steel and include all the required installation hardware. These frames are hinged to facilitate the access to install 19 inch rack equipment. The racks can be installed at any depth within the cabinet. The racks are finished with heat fused powder paint, electrostatically applied on a pretreated base. The finish is RAL 7011 sandtex dark gray. ANSI / CEA-310DIMENSIONS6500 MXSR0706 700 600 540 495 9 6500 MXSR0707 700 700 540 495 9 6500 MXSR0708 700 800 540 495 9 6500 MXSR1406 1400 600 1240 495 25 6500 MXSR1407 1400 700 1240 495 25 6500 MXSR1408 1400 800 1240 495 25 6500 MXSR1606 1600 600 1440 495 30 6500 MXSR1608 1600 800 1440 495 30 6500 MXSR1806 1800 600 1640 495 34 6500 MXSR1808 1800 800 1640 495 34 6500 MXSR2006 2000 600 1840 495 39 6500 MXSR2007 2000 700 1840 495 39 6500 MXSR2008 2000 800 1840 495 39 6500 MXSR2206 2200 600 2040 495 43 6500 MXSR2207 2200 700 2040 495 43 6500 MXSR2208 2200 800 2040 495 43 %u2021 Swing out racks can be installed in cabinets with widths equal to the dimension listed in column %u2018W%u2019. For cabinets 700mm and 800mm wide, filler panels are supplied to fill the gap between the cabinet%u2019s frame and the swing-out rack%u2019s frame.H %u2020 W %u2021 A BCATALOG NOMINALNUMBERRACK UNITSAB79.4mm
