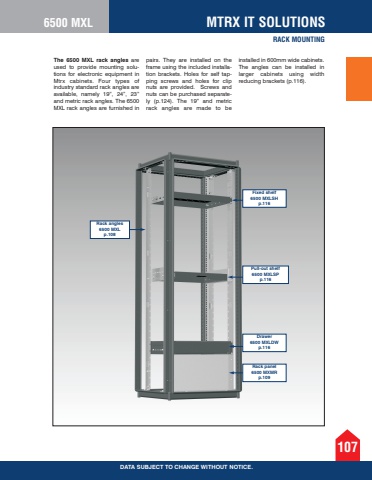

107MTRX IT SOLUTIONSDATA SUBJECT TO CHANGE WITHOUT NOTICE.RACK MOUNTING6500 MXLThe 6500 MXL rack angles are used to provide mounting solutions for electronic equipment in Mtrx cabinets. Four types of industry standard rack angles are available, namely 19%u201d, 24%u201d, 23%u201d and metric rack angles. The 6500 MXL rack angles are furnished in pairs. They are installed on the frame using the included installation brackets. Holes for self tapping screws and holes for clip nuts are provided. Screws and nuts can be purchased separately (p.124). The 19%u201d and metric rack angles are made to be installed in 600mm wide cabinets. The angles can be installed in larger cabinets using width reducing brackets (p.116).Fixed shelf 6500 MXLSH p.116Rack angles 6500 MXL p.108Pull-out shelf 6500 MXLSP p.116Drawer 6500 MXLDW p.116Rack panel 6500 MXMR p.109
