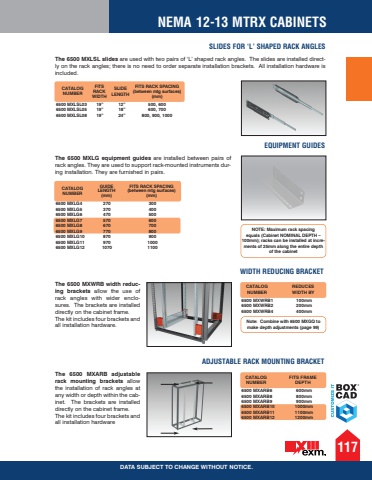

117NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXLG equipment guides are installed between pairs of rack angles. They are used to support rack-mounted instruments during installation. They are furnished in pairs.The 6500 MXWRB width reducing brackets allow the use of rack angles with wider enclosures. The brackets are installed directly on the cabinet frame. The kit includes four brackets and all installation hardware.CATALOG NUMBER6500 MXWRB1 100mm 6500 MXWRB2 200mm 6500 MXWRB4 400mm REDUCES WIDTH BYThe 6500 MXARB adjustable rack mounting brackets allow the installation of rack angles at any width or depth within the cabinet. The brackets are installed directly on the cabinet frame. The kit includes four brackets and all installation hardwareCATALOG NUMBER6500 MXARB6 600mm 6500 MXARB8 800mm 6500 MXARB9 900mm 6500 MXARB10 1000mm 6500 MXARB11 1100mm 6500 MXARB12 1200mm FITS FRAME DEPTHNOTE: Maximum rack spacing equals (Cabinet NOMINAL DEPTH %u2013 100mm); racks can be installed at increments of 25mm along the entire depth of the cabinetNote: Combine with 6500 MXGQ to make depth adjustments (page 99)The 6500 MXLSL slides are used with two pairs of %u2018L%u2019 shaped rack angles. The slides are installed directly on the rack angles; there is no need to order separate installation brackets. All installation hardware is included. FITS RACK WIDTHSLIDE LENGTHFITS RACK SPACING (between mtg surfaces) (mm)6500 MXLSL03 6500 MXLSL05 6500 MXLSL0812%u201d 18%u201d 24%u201d500, 600 600, 700 800, 900, 1000CATALOG NUMBER19%u201d 19%u201d 19%u201d GUIDE LENGTH (mm)FITS RACK SPACING (between mtg surfaces) (mm)6500 MXLG4 6500 MXLG5 6500 MXLG6 6500 MXLG7 6500 MXLG8 6500 MXLG9 6500 MXLG10 6500 MXLG11 6500 MXLG12 300 400 500 600 700 800 900 1000 1100 CATALOG NUMBER270 370 470 570 670 770 870 970 1070 SLIDES FOR %u2018L%u2019 SHAPED RACK ANGLESEQUIPMENT GUIDESWIDTH REDUCING BRACKETADJUSTABLE RACK MOUNTING BRACKET
