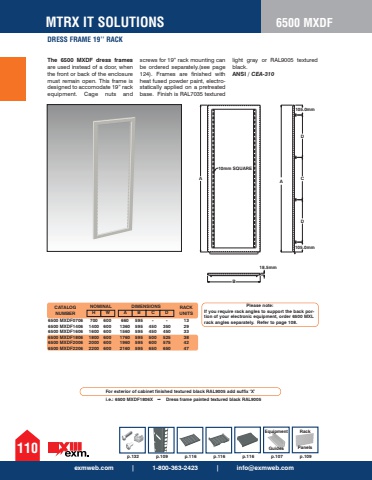

p.132 p.109 p.116 p.116 p.116 p.107 p.109Equipment GuidesRack PanelsMTRX IT SOLUTIONS110DRESS FRAME 19%u2019%u2019 RACK6500 MXDFThe 6500 MXDF dress framesare used instead of a door, when the front or back of the enclosure must remain open. This frame is designed to accomodate 19%u201d rack equipment. Cage nuts and screws for 19%u201d rack mounting can be ordered separately.(see page 124). Frames are finished with heat fused powder paint, electrostatically applied on a pretreated base. Finish is RAL7035 textured light gray or RAL9005 textured black. ANSI / CEA-310A AB10mm SQUARE18.5mm105.0mmDCD105.0mm6500 MXDF0706 700 600 660 595 - - 136500 MXDF1406 1400 600 1360 595 450 350 296500 MXDF1606 1600 600 1560 595 450 450 336500 MXDF1806 1800 600 1760 595 500 525 38 6500 MXDF2006 2000 600 1960 595 600 575 42 6500 MXDF2206 2200 600 2160 595 650 650 47CATALOG NUMBERDIMENSIONSH W A B C DNOMINAL RACK UNITSPlease note: If you require rack angles to support the back portion of your electronic equipment, order 6500 MXL rack angles separately. Refer to page 108.For exterior of cabinet finished textured black RAL9005 add suffix %u2018X%u2019 i.e.: 6500 MXDF1806X %uf0b0 Dress frame painted textured black RAL9005exmweb.com | 1-800-363-2423 | [email protected]
