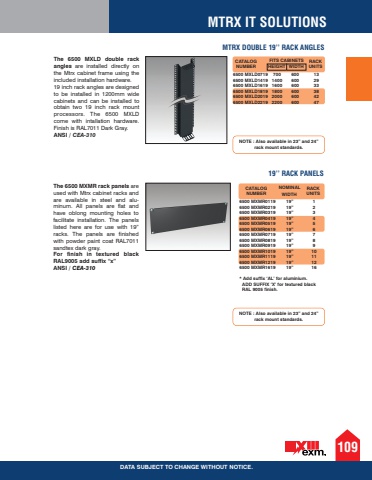

109MTRX IT SOLUTIONSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXLD double rack angles are installed directly on the Mtrx cabinet frame using the included installation hardware. 19 inch rack angles are designed to be installed in 1200mm wide cabinets and can be installed to obtain two 19 inch rack mount processors. The 6500 MXLD come with intallation hardware. Finish is RAL7011 Dark Gray. ANSI / CEA-3106500 MXLD0719 700 600 13 6500 MXLD1419 1400 600 29 6500 MXLD1619 1600 600 33 6500 MXLD1819 1800 600 38 6500 MXLD2019 2000 600 42 6500 MXLD2219 2200 600 47CATALOG NUMBERFITS CABINETSHEIGHT WIDTHRACK UNITSNOTE : Also available in 23%u201d and 24%u201d rack mount standards.The 6500 MXMR rack panels are used with Mtrx cabinet racks and are available in steel and aluminum. All panels are flat and have oblong mounting holes to facilitate installation. The panels listed here are for use with 19%u201d racks. The panels are finished with powder paint coat RAL7011 sandtex dark gray. For finish in textured black RAL9005 add suffix %u201cx%u201dANSI / CEA-310CATALOG NUMBER6500 MXMR0119 19%u201d 1 6500 MXMR0219 19%u201d 2 6500 MXMR0319 19%u201d 3 6500 MXMR0419 19%u201d 4 6500 MXMR0519 19%u201d 5 6500 MXMR0619 19%u201d 6 6500 MXMR0719 19%u201d 7 6500 MXMR0819 19%u201d 8 6500 MXMR0919 19%u201d 9 6500 MXMR1019 19%u201d 10 6500 MXMR1119 19%u201d 11 6500 MXMR1219 19%u201d 12 6500 MXMR1619 19%u201d 16 * Add suffix %u2018AL%u2019 for aluminium.ADD SUFFIX %u2018X%u2019 for textured blackRAL 9005 finish.WIDTHNOMINAL RACK UNITSNOTE : Also available in 23%u201d and 24%u201d rack mount standards.MTRX DOUBLE 19%u2019%u2019 RACK ANGLES19%u2019%u2019 RACK PANELS
