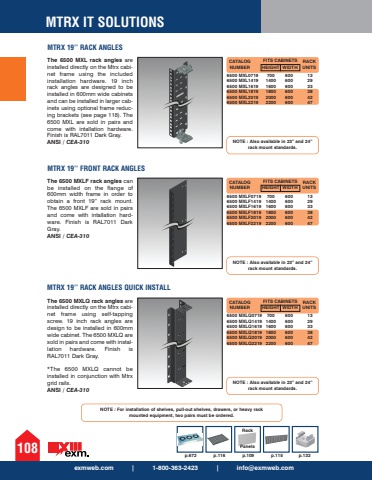

p.672 p.116 p.109 p.115 p.132Rack Panelsexmweb.com | 1-800-363-2423 | [email protected] IT SOLUTIONS108NOTE : For installation of shelves, pull-out shelves, drawers, or heavy rack mounted equipment, two pairs must be ordered. The 6500 MXL rack angles are installed directly on the Mtrx cabinet frame using the included installation hardware. 19 inch rack angles are designed to be installed in 600mm wide cabinets and can be installed in larger cabinets using optional frame reducing brackets (see page 118). The 6500 MXL are sold in pairs and come with intallation hardware. Finish is RAL7011 Dark Gray. ANSI / CEA-3106500 MXL0719 700 600 13 6500 MXL1419 1400 600 29 6500 MXL1619 1600 600 33 6500 MXL1819 1800 600 38 6500 MXL2019 2000 600 42 6500 MXL2219 2200 600 47CATALOG NUMBERFITS CABINETSHEIGHT WIDTHRACK UNITSThe 6500 MXLF rack angles can be installed on the flange of 600mm width frame in order to obtain a front 19%u201d rack mount. The 6500 MXLF are sold in pairs and come with intallation hardware. Finish is RAL7011 Dark Gray. ANSI / CEA-3106500 MXLF0719 700 600 13 6500 MXLF1419 1400 600 29 6500 MXLF1619 1600 600 33 6500 MXLF1819 1800 600 38 6500 MXLF2019 2000 600 42 6500 MXLF2219 2200 600 47CATALOG NUMBERFITS CABINETSHEIGHT WIDTHRACK UNITSThe 6500 MXLQ rack angles are installed directly on the Mtrx cabinet frame using self-tapping screw. 19 inch rack angles are design to be installed in 600mm wide cabinet. The 6500 MXLQ are sold in pairs and come with installation hardware. Finish is RAL7011 Dark Gray. *The 6500 MXLQ cannot beinstalled in conjunction with Mtrxgrid rails.ANSI / CEA-3106500 MXLQ0719 700 600 13 6500 MXLQ1419 1400 600 29 6500 MXLQ1619 1600 600 33 6500 MXLQ1819 1800 600 38 6500 MXLQ2019 2000 600 42 6500 MXLQ2219 2200 600 47CATALOG NUMBERFITS CABINETSHEIGHT WIDTHRACK UNITSNOTE : Also available in 23%u201d and 24%u201d rack mount standards.NOTE : Also available in 23%u201d and 24%u201d rack mount standards.NOTE : Also available in 23%u201d and 24%u201d rack mount standards.MTRX 19%u2019%u2019 RACK ANGLESMTRX 19%u2019%u2019 FRONT RACK ANGLESMTRX 19%u2019%u2019 RACK ANGLES QUICK INSTALL
