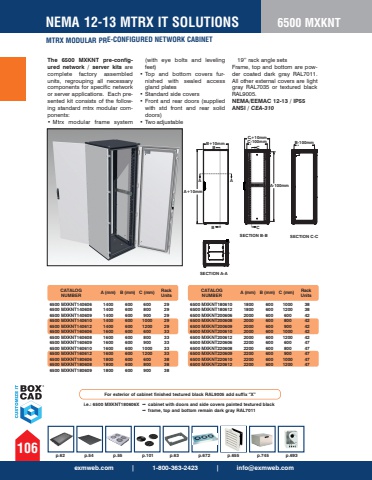

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX IT SOLUTIONSMTRX MODULAR PRE-CONFIGURED NETWORK CABINET1066500 MXKNTThe 6500 MXKNT pre-configured network / server kits are complete factory assembled units, regrouping all necessary components for specific network or server applications. Each presented kit consists of the following standard mtrx modular components: %u2022 Mtrx modular frame system(with eye bolts and leveling feet) %u2022 Top and bottom covers furnished with sealed accessgland plates%u2022 Standard side covers%u2022 Front and rear doors (suppliedwith std front and rear soliddoors)%u2022 Two adjustable19%u2019%u2019 rack angle sets Frame, top and bottom are powder coated dark gray RAL7011. All other external covers are light gray RAL7035 or textured black RAL9005. NEMA/EEMAC 12-13 / IP55 ANSI / CEA-310 A ABBSECTION A-AA+10mmB+10mmCCSECTION B-B SECTION C-CC+10mmB-100mmA-100mmC-100mm6500 MXKNT140606 1400 600 600 29 6500 MXKNT140608 1400 600 800 29 6500 MXKNT140609 1400 600 900 29 6500 MXKNT140610 1400 600 1000 29 6500 MXKNT140612 1400 600 1200 29 6500 MXKNT160606 1600 600 600 33 6500 MXKNT160608 1600 600 800 33 6500 MXKNT160609 1600 600 900 33 6500 MXKNT160610 1600 600 1000 33 6500 MXKNT160612 1600 600 1200 33 6500 MXKNT180606 1800 600 600 38 6500 MXKNT180608 1800 600 800 38 6500 MXKNT180609 1800 600 900 38CATALOG NUMBER A (mm) B (mm) C (mm) 6500 MXKNT180610 1800 600 1000 38 6500 MXKNT180612 1800 600 1200 38 6500 MXKNT200606 2000 600 600 42 6500 MXKNT200608 2000 600 800 42 6500 MXKNT200609 2000 600 900 42 6500 MXKNT200610 2000 600 1000 42 6500 MXKNT200612 2000 600 1200 42 6500 MXKNT220606 2200 600 600 47 6500 MXKNT220608 2200 600 800 47 6500 MXKNT220609 2200 600 900 47 6500 MXKNT220610 2200 600 1000 47 6500 MXKNT220612 2200 600 1200 47 CATALOG NUMBERFor exterior of cabinet finished textured black RAL9005 add suffix %u201cX%u201d p.62 p.54 p.55 p.101 p.63 p.672 p.745 p.693i.e.: 6500 MXKNT180606X %uf0b0 cabinet with doors and side covers painted textured black%uf0b0 frame, top and bottom remain dark gray RAL7011Rack Units A (mm) B (mm) C (mm) Rack Unitsp.655
