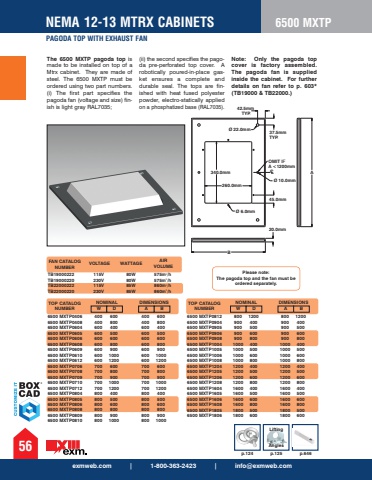

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSPAGODA TOP WITH EXHAUST FAN566500 MXTPThe 6500 MXTP pagoda top is made to be installed on top of a Mtrx cabinet. They are made of steel. The 6500 MXTP must be ordered using two part numbers. (i) The first part specifies the pagoda fan (voltage and size) finish is light gray RAL7035; (ii) the second specifies the pagoda pre-perforated top cover. A robotically poured-in-place gasket ensures a complete and durable seal. The tops are finished with heat fused polyester powder, electro-statically applied on a phosphatized base (RAL7035). Note: Only the pagoda top cover is factory assembled. The pagoda fan is supplied inside the cabinet. For further details on fan refer to p. 603* (TB19000 & TB22000.)42.5mmTYP.37.5mmTYP.%u00d8 22.0mm340.0mm260.0mm%u00d8 6.0mmOMIT IFA <1200mmCL%u00d8 10.0mm45.0mmA20.0mmB6500 MXTP0406 400 600 400 600 6500 MXTP0408 400 800 400 800 6500 MXTP0604 600 400 600 400 6500 MXTP0605 600 500 600 500 6500 MXTP0606 600 600 600 600 6500 MXTP0608 600 800 600 800 6500 MXTP0609 600 900 600 900 6500 MXTP0610 600 1000 600 1000 6500 MXTP0612 600 1200 600 1200 6500 MXTP0706 700 600 700 600 6500 MXTP0708 700 800 700 800 6500 MXTP0709 700 900 700 900 6500 MXTP0710 700 1000 700 1000 6500 MXTP0712 700 1200 700 1200 6500 MXTP0804 800 400 800 400 6500 MXTP0805 800 500 800 500 6500 MXTP0806 800 600 800 600 6500 MXTP0808 800 800 800 800 6500 MXTP0809 800 900 800 900 6500 MXTP0810 800 1000 800 1000 6500 MXTP0812 800 1200 800 1200 6500 MXTP0904 900 400 900 400 6500 MXTP0905 900 500 900 500 6500 MXTP0906 900 600 900 600 6500 MXTP0908 900 800 900 800 6500 MXTP1004 1000 400 1000 400 6500 MXTP1005 1000 500 1000 500 6500 MXTP1006 1000 600 1000 600 6500 MXTP1008 1000 800 1000 800 6500 MXTP1204 1200 400 1200 400 6500 MXTP1205 1200 500 1200 500 6500 MXTP1206 1200 600 1200 600 6500 MXTP1208 1200 800 1200 800 6500 MXTP1604 1600 400 1600 400 6500 MXTP1605 1600 500 1600 500 6500 MXTP1606 1600 600 1600 600 6500 MXTP1608 1600 800 1600 800 6500 MXTP1805 1800 500 1800 500 6500 MXTP1806 1800 600 1800 600FAN CATALOG NUMBERTB19000222 115V 80W 575m3/h TB19000220 230V 80W 575m3/h TB22000222 115V 85W 860m3/h TB22000220 230V 85W 860m3/hVOLTAGEp.124 p.125Lifting AnglesAIR VOLUME WATTAGETOP CATALOG NUMBERDIMENSIONSW D A BNOMINAL DIMENSIONSW D A BTOP CATALOG NOMINALNUMBERPlease note: The pagoda top and the fan must be ordered separately.p.646
