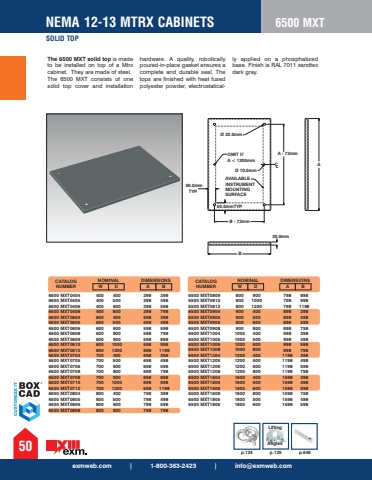

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSSOLID TOP506500 MXTThe 6500 MXT solid top is made to be installed on top of a Mtrx cabinet. They are made of steel. The 6500 MXT consists of one solid top cover and installation hardware. A quality, robotically poured-in-place gasket ensures a complete and durable seal. The tops are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Finish is RAL 7011 sandtex dark gray.A - 73mmB - 73mmAB20.0mm50.0mmTYP.50.0mmTYP.%u00d8 22.0mmOMIT IFA < 1200mmC%u00d8 10.0mmLAVAILABLEINSTRUMENTMOUNTINGSURFACECATALOG NUMBERDIMENSIONSW D A BNOMINAL DIMENSIONSW D A BCATALOG NOMINALNUMBER6500 MXT0809 6500 MXT0810 6500 MXT0812 6500 MXT0904 6500 MXT0905 6500 MXT0906 6500 MXT0908 6500 MXT1004 6500 MXT1005 6500 MXT1006 6500 MXT1008 6500 MXT1204 6500 MXT1205 6500 MXT1206 6500 MXT1208 6500 MXT1604 6500 MXT1605 6500 MXT1606 6500 MXT1608 6500 MXT1805 6500 MXT1806 800 900 800 1000 800 1200 900 400 900 500 900 600 900 800 1000 400 1000 500 1000 600 1000 800 1200 400 1200 500 1200 600 1200 800 1600 400 1600 500 1600 600 1600 800 1800 500 1800 600 798 898 798 998 798 1198 898 398 898 498 898 598 898 798 998 398 998 498 998 598 998 798 1198 398 1198 498 1198 598 1198 798 1598 398 1598 498 1598 598 1598 798 1598 498 1598 598 6500 MXT0404 6500 MXT0405 6500 MXT0406 6500 MXT0408 6500 MXT0604 6500 MXT0605 6500 MXT0606 6500 MXT0608 6500 MXT0609 6500 MXT0610 6500 MXT0612 6500 MXT0704 6500 MXT0705 6500 MXT0706 6500 MXT0708 6500 MXT0709 6500 MXT0710 6500 MXT0712 6500 MXT0804 6500 MXT0805 6500 MXT0806 6500 MXT0808 400 400 400 500 400 600 400 800 600 400 600 500 600 600 600 800 600 900 600 1000 600 1200 700 400 700 500 700 600 700 800 700 900 700 1000 700 1200 800 400 800 500 800 600 800 800 398 398 398 498 398 598 398 798 598 398 598 498 598 598 598 798 598 898 598 998 598 1198 698 398 698 498 698 598 698 798 698 898 698 998 698 1198 798 398 798 498 798 598 798 798 p.124 p.125Lifting Anglesp.646
