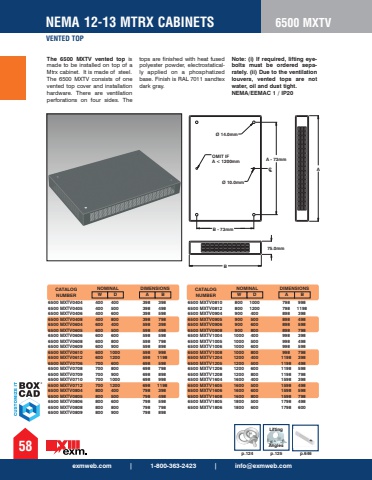

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSVENTED TOP586500 MXTVThe 6500 MXTV vented top is made to be installed on top of a Mtrx cabinet. It is made of steel. The 6500 MXTV consists of one vented top cover and installation hardware. There are ventilation perforations on four sides. The tops are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Finish is RAL 7011 sandtex dark gray. Note: (i) If required, lifting eyebolts must be ordered separately. (ii) Due to the ventilation louvers, vented tops are not water, oil and dust tight. NEMA/EEMAC 1 / IP20A - 73mmB - 73mmAB75.0mm%u00d8 10.0mm%u00d8 14.0mmOMIT IFA < 1200mmCL6500 MXTV0404 400 400 398 398 6500 MXTV0405 400 500 398 498 6500 MXTV0406 400 600 398 598 6500 MXTV0408 400 800 398 798 6500 MXTV0604 600 400 598 398 6500 MXTV0605 600 500 598 498 6500 MXTV0606 600 600 598 598 6500 MXTV0608 600 800 598 798 6500 MXTV0609 600 900 598 898 6500 MXTV0610 600 1000 598 998 6500 MXTV0612 600 1200 598 1198 6500 MXTV0706 700 600 698 598 6500 MXTV0708 700 800 698 798 6500 MXTV0709 700 900 698 898 6500 MXTV0710 700 1000 698 998 6500 MXTV0712 700 1200 698 1198 6500 MXTV0804 800 400 798 398 6500 MXTV0805 800 500 798 498 6500 MXTV0806 800 600 798 598 6500 MXTV0808 800 800 798 798 6500 MXTV0809 800 900 798 898 6500 MXTV0810 800 1000 798 998 6500 MXTV0812 800 1200 798 1198 6500 MXTV0904 900 400 898 398 6500 MXTV0905 900 500 898 498 6500 MXTV0906 900 600 898 598 6500 MXTV0908 900 800 898 798 6500 MXTV1004 1000 400 998 398 6500 MXTV1005 1000 500 998 498 6500 MXTV1006 1000 600 998 598 6500 MXTV1008 1000 800 998 798 6500 MXTV1204 1200 400 1198 398 6500 MXTV1205 1200 500 1198 498 6500 MXTV1206 1200 600 1198 598 6500 MXTV1208 1200 800 1198 798 6500 MXTV1604 1600 400 1598 398 6500 MXTV1605 1600 500 1598 498 6500 MXTV1606 1600 600 1598 598 6500 MXTV1608 1600 800 1598 798 6500 MXTV1805 1800 500 1798 498 6500 MXTV1806 1800 600 1798 600p.124 p.125Lifting AnglesCATALOG NUMBERDIMENSIONSW D A BNOMINAL DIMENSIONSW D A BCATALOG NOMINALNUMBERp.646
