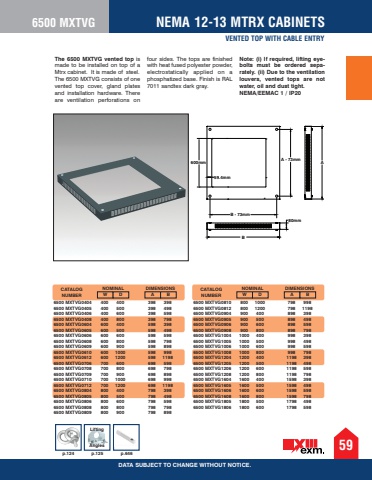

6500 MXTVG59NEMA 12-13 MTRX CABINETSVENTED TOP WITH CABLE ENTRYDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXTVG vented top is made to be installed on top of a Mtrx cabinet. It is made of steel. The 6500 MXTVG consists of one vented top cover, gland plates and installation hardware. There are ventilation perforations on four sides. The tops are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Finish is RAL 7011 sandtex dark gray. Note: (i) If required, lifting eyebolts must be ordered separately. (ii) Due to the ventilation louvers, vented tops are not water, oil and dust tight. NEMA/EEMAC 1 / IP20AB80mm600mm59.4mmA - 73mmB - 73mm6500 MXTVG0404 400 400 398 398 6500 MXTVG0405 400 500 398 498 6500 MXTVG0406 400 600 398 598 6500 MXTVG0408 400 800 398 798 6500 MXTVG0604 600 400 598 398 6500 MXTVG0605 600 500 598 498 6500 MXTVG0606 600 600 598 598 6500 MXTVG0608 600 800 598 798 6500 MXTVG0609 600 900 598 898 6500 MXTVG0610 600 1000 598 998 6500 MXTVG0612 600 1200 598 1198 6500 MXTVG0706 700 600 698 598 6500 MXTVG0708 700 800 698 798 6500 MXTVG0709 700 900 698 898 6500 MXTVG0710 700 1000 698 998 6500 MXTVG0712 700 1200 698 1198 6500 MXTVG0804 800 400 798 398 6500 MXTVG0805 800 500 798 498 6500 MXTVG0806 800 600 798 598 6500 MXTVG0808 800 800 798 798 6500 MXTVG0809 800 900 798 898 6500 MXTVG0810 800 1000 798 998 6500 MXTVG0812 800 1200 798 1198 6500 MXTVG0904 900 400 898 398 6500 MXTVG0905 900 500 898 498 6500 MXTVG0906 900 600 898 598 6500 MXTVG0908 900 800 898 798 6500 MXTVG1004 1000 400 998 398 6500 MXTVG1005 1000 500 998 498 6500 MXTVG1006 1000 600 998 598 6500 MXTVG1008 1000 800 998 798 6500 MXTVG1204 1200 400 1198 398 6500 MXTVG1205 1200 500 1198 498 6500 MXTVG1206 1200 600 1198 598 6500 MXTVG1208 1200 800 1198 798 6500 MXTVG1604 1600 400 1598 398 6500 MXTVG1605 1600 500 1598 498 6500 MXTVG1606 1600 600 1598 598 6500 MXTVG1608 1600 800 1598 798 6500 MXTVG1805 1800 500 1798 498 6500 MXTVG1806 1800 600 1798 598p.124 p.125Lifting AnglesCATALOG NUMBERDIMENSIONSW D A BNOMINAL DIMENSIONSW D A BCATALOG NOMINALNUMBERp.646
