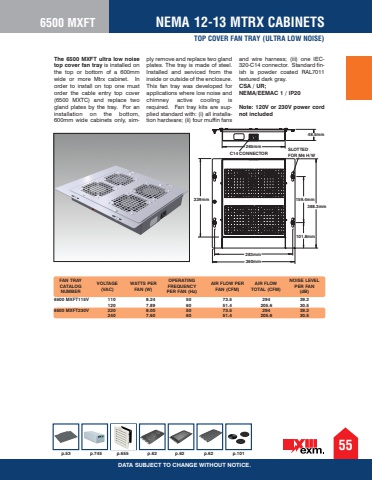

TOP COVER FAN TRAY (ULTRA LOW NOISE)6500 MXFT55NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.SLOTTEDFOR M6 H/W48.5mm159.4mm388.3mm101.8mm283mm360mm339mm265mmC14 CONNECTORThe 6500 MXFT ultra low noise top cover fan tray is installed on the top or bottom of a 600mm wide or more Mtrx cabinet. In order to install on top one must order the cable entry top cover (6500 MXTC) and replace two gland plates by the tray. For an installation on the bottom, 600mm wide cabinets only, simply remove and replace two gland plates. The tray is made of steel. Installed and serviced from the inside or outside of the enclosure. This fan tray was developed for applications where low noise and chimney active cooling is required. Fan tray kits are supplied standard with: (i) all installation hardware; (ii) four muffin fans and wire harness; (iii) one IEC320-C14 connector. Standard finish is powder coated RAL7011textured dark gray.CSA / UR;NEMA/EEMAC 1 / IP20Note: 120V or 230V power cord not included6500 MXFT115V 110 8.24 50 73.5 294 39.2 120 7.89 60 51.4 205.6 30.5 6500 MXFT230V 220 8.00 50 73.5 294 39.2 240 7.60 60 51.4 205.6 30.5 VOLTAGE (VAC)WATTS PER FAN (W)OPERATING FREQUENCY PER FAN (Hz) NOISE LEVEL PER FAN (dB)FAN TRAY CATALOG NUMBERAIR FLOW PER FAN (CFM)p.53 p.745 p.62 p.62 p.62 p.101AIR FLOW TOTAL (CFM)p.655
