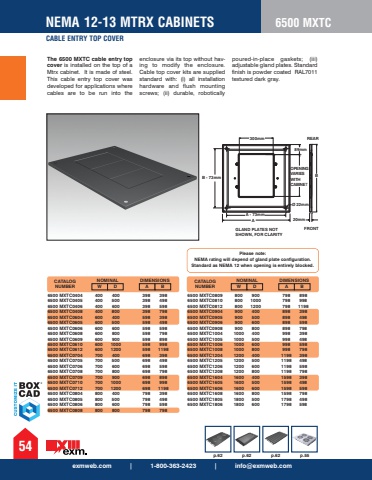

exmweb.com | 1-800-363-2423 | [email protected] 12-13 MTRX CABINETSCABLE ENTRY TOP COVER546500 MXTCThe 6500 MXTC cable entry top cover is installed on the top of a Mtrx cabinet. It is made of steel. This cable entry top cover was developed for applications where cables are to be run into the enclosure via its top without having to modify the enclosure. Cable top cover kits are supplied standard with: (i) all installation hardware and flush mounting screws; (ii) durable, robotically poured-in-place gaskets; (iii) adjustable gland plates. Standard finish is powder coated RAL7011 textured dark gray. B300mmOPENINGVARIESWITHCABINET89mm%u00d8 22mmA 20mmB - 73mmFRONTREARA - 73mmGLAND PLATES NOTSHOWN, FOR CLARITYCATALOG NUMBERDIMENSIONSW D A BNOMINAL DIMENSIONSW D A BCATALOG NOMINALNUMBER6500 MXTC0809 6500 MXTC0810 6500 MXTC0812 6500 MXTC0904 6500 MXTC0905 6500 MXTC0906 6500 MXTC0908 6500 MXTC1004 6500 MXTC1005 6500 MXTC1006 6500 MXTC1008 6500 MXTC1204 6500 MXTC1205 6500 MXTC1206 6500 MXTC1208 6500 MXTC1604 6500 MXTC1605 6500 MXTC1606 6500 MXTC1608 6500 MXTC1805 6500 MXTC1806 800 900 800 1000 800 1200 900 400 900 500 900 600 900 800 1000 400 1000 500 1000 600 1000 800 1200 400 1200 500 1200 600 1200 800 1600 400 1600 500 1600 600 1600 800 1800 500 1800 600 798 898 798 998 798 1198 898 398 898 498 898 598 898 798 998 398 998 498 998 598 998 798 1198 398 1198 498 1198 598 1198 798 1598 398 1598 498 1598 598 1598 798 1798 498 1798 598 6500 MXTC0404 6500 MXTC0405 6500 MXTC0406 6500 MXTC0408 6500 MXTC0604 6500 MXTC0605 6500 MXTC0606 6500 MXTC0608 6500 MXTC0609 6500 MXTC0610 6500 MXTC0612 6500 MXTC0704 6500 MXTC0705 6500 MXTC0706 6500 MXTC0708 6500 MXTC0709 6500 MXTC0710 6500 MXTC0712 6500 MXTC0804 6500 MXTC0805 6500 MXTC0806 6500 MXTC0808 400 400 400 500 400 600 400 800 600 400 600 500 600 600 600 800 600 900 600 1000 600 1200 700 400 700 500 700 600 700 800 700 900 700 1000 700 1200 800 400 800 500 800 600 800 800 398 398 398 498 398 598 398 798 598 398 598 498 598 598 598 798 598 898 598 998 598 1198 698 398 698 498 698 598 698 798 698 898 698 998 698 1198 798 398 798 498 798 598 798 798 p.62 p.62 p.62 p.55Please note: NEMA rating will depend of gland plate configuration. Standard as NEMA 12 when opening is entirely blocked.
