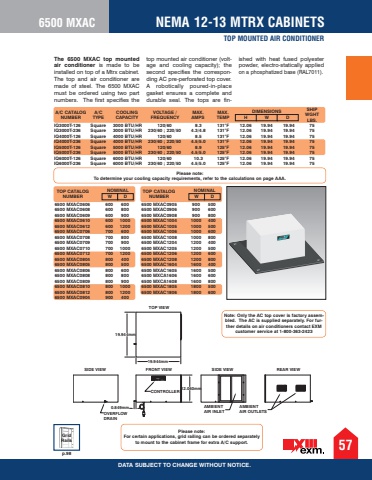

TOP MOUNTED AIR CONDITIONER6500 MXAC57NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXAC top mounted air conditioner is made to be installed on top of a Mtrx cabinet. The top and air conditioner are made of steel. The 6500 MXAC must be ordered using two part numbers. The first specifies the top mounted air conditioner (voltage and cooling capacity); the second specifies the corresponding AC pre-perforated top cover. A robotically poured-in-place gasket ensures a complete and durable seal. The tops are finished with heat fused polyester powder, electro-statically applied on a phosphatized base (RAL7011).IQ3000T-126 Square 3000 BTU/HR 120/60 8.3 131%u00b0F 12.06 19.94 19.94 75IQ3000T-236 Square 3000 BTU/HR 230/60 ; 220/50 4.3/4.8 131%u00b0F 12.06 19.94 19.94 75 IQ4000T-126 Square 4000 BTU/HR 120/60 8.5 131%u00b0F 12.06 19.94 19.94 75 IQ4000T-236 Square 4000 BTU/HR 230/60 ; 220/50 4.5/5.0 131%u00b0F 12.06 19.94 19.94 75 IQ5000T-126 Square 5000 BTU/HR 120/60 8.9 125%u00b0F 12.06 19.94 19.94 75 IQ5000T-236 Square 5000 BTU/HR 230/60 ; 220/50 4.5/5.0 125%u00b0F 12.06 19.94 19.94 75 IQ6000T-126 Square 6000 BTU/HR 120/60 10.3 125%u00b0F 12.06 19.94 19.94 75 IQ6000T-236 Square 6000 BTU/HR 230/60 ; 220/50 4.5/5.0 125%u00b0F 12.06 19.94 19.94 75Please note: To determine your cooling capacity requirements, refer to the calculations on page AAA.TOP CATALOG NUMBER W DNOMINALA/C CATALOG NUMBERA/C TYPECOOLING CAPACITYVOLTAGE / FREQUENCYMAX. AMPSPlease note: For certain applications, grid railing can be ordered separately to mount to the cabinet frame for extra A/C support.p.98Grid Rails6500 MXAC0606 600 600 6500 MXAC0608 600 800 6500 MXAC0609 600 900 6500 MXAC0610 600 1000 6500 MXAC0612 600 1200 6500 MXAC0706 700 600 6500 MXAC0708 700 800 6500 MXAC0709 700 900 6500 MXAC0710 700 1000 6500 MXAC0712 700 1200 6500 MXAC0804 800 400 6500 MXAC0805 800 500 6500 MXAC0806 800 600 6500 MXAC0808 800 800 6500 MXAC0809 800 900 6500 MXAC0810 800 1000 6500 MXAC0812 800 1200 6500 MXAC0904 900 400H W DDIMENSIONSTOP CATALOG NUMBER W DNOMINAL6500 MXAC0905 900 5006500 MXAC0906 900 6006500 MXAC0908 900 8006500 MXAC1004 1000 4006500 MXAC1005 1000 5006500 MXAC1006 1000 6006500 MXAC1008 1000 8006500 MXAC1204 1200 4006500 MXAC1205 1200 5006500 MXAC1206 1200 6006500 MXAC1208 1200 8006500 MXAC1604 1600 4006500 MXAC1605 1600 5006500 MXCA1606 1600 6006500 MXCA1608 1600 8006500 MXAC1805 1800 5006500 MXAC1806 1800 600MAX. TEMPSHIP WGHT LBS.TOP VIEWFRONT VIEWCONTROLLERSIDE VIEWAMBIENTAIR INLETAMBIENTAIR OUTLETSSIDE VIEW REAR VIEWOVERFLOWDRAIN19.944mm19.944mm12.060mm0.849mmNote: Only the AC top cover is factory assembled. The AC is supplied separately. For further details on air conditioners contact EXM customer service at 1-800-363-2423
