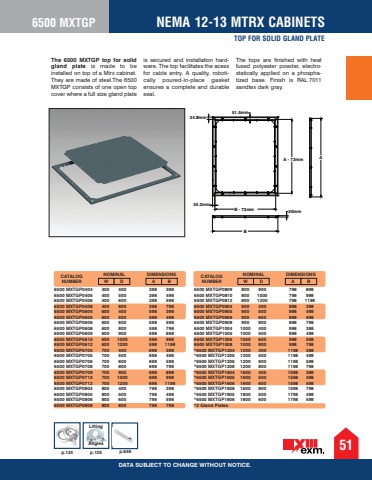

6500 MXTGP51NEMA 12-13 MTRX CABINETSTOP FOR SOLID GLAND PLATEDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXTGP top for solid gland plate is made to be installed on top of a Mtrx cabinet. They are made of steel.The 6500 MXTGP consists of one open top cover where a full size gland plate is secured and installation hardware. The top facilitates the acess for cable entry. A quality, robotically poured-in-place gasket ensures a complete and durable seal. The tops are finished with heat fused polyester powder, electrostatically applied on a phosphatized base. Finish is RAL 7011 sandtex dark gray.AB51.5mm34.2mm34.2mm20mmA - 73mmB - 73mmp.124 p.125Lifting AnglesCATALOG NUMBERDIMENSIONSW D A BNOMINAL DIMENSIONSW D A BCATALOG NOMINALNUMBER6500 MXTGP0809 6500 MXTGP0810 6500 MXTGP0812 6500 MXTGP0904 6500 MXTGP0905 6500 MXTGP0906 6500 MXTGP0908 6500 MXTGP1004 6500 MXTGP1005 6500 MXTGP1006 6500 MXTGP1008 *6500 MXTGP1204*6500 MXTGP1205*6500 MXTGP1206*6500 MXTGP1208*6500 MXTGP1604*6500 MXTGP1605*6500 MXTGP1606*6500 MXTGP1608*6500 MXTGP1805*6500 MXTGP1806*2 Gland Plates 800 900 800 1000 800 1200 900 400 900 500 900 600 900 800 1000 400 1000 500 1000 600 1000 800 1200 400 1200 500 1200 600 1200 800 1600 400 1600 500 1600 600 1600 800 1800 500 1800 600 798 898 798 998 798 1198 898 398 898 498 898 598 898 798 998 398 998 498 998 598 998 798 1198 398 1198 498 1198 598 1198 798 1598 398 1598 498 1598 598 1598 798 1798 498 1798 598 6500 MXTGP0404 6500 MXTGP0405 6500 MXTGP0406 6500 MXTGP0408 6500 MXTGP0604 6500 MXTGP0605 6500 MXTGP0606 6500 MXTGP0608 6500 MXTGP0609 6500 MXTGP0610 6500 MXTGP0612 6500 MXTGP0704 6500 MXTGP0705 6500 MXTGP0706 6500 MXTGP0708 6500 MXTGP0709 6500 MXTGP0710 6500 MXTGP0712 6500 MXTGP0804 6500 MXTGP0805 6500 MXTGP0806 6500 MXTGP0808 400 400 400 500 400 600 400 800 600 400 600 500 600 600 600 800 600 900 600 1000 600 1200 700 400 700 500 700 600 700 800 700 900 700 1000 700 1200 800 400 800 500 800 600 800 800 398 398 398 498 398 598 398 798 598 398 598 498 598 598 598 798 598 898 598 998 598 1198698 398 698 498 698 598 698 798 698 898 698 998 698 1198 798 398 798 498 798 598 798 798 p.646
