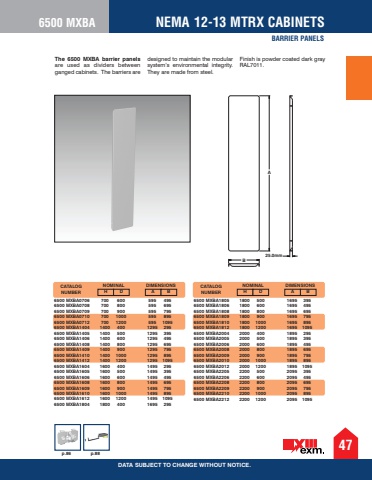

BARRIER PANELS6500 MXBA47NEMA 12-13 MTRX CABINETSDATA SUBJECT TO CHANGE WITHOUT NOTICE.The 6500 MXBA barrier panels are used as dividers between ganged cabinets. The barriers are designed to maintain the modular system%u2019s environmental integrity. They are made from steel. Finish is powder coated dark gray RAL7011. BA25.0mm6500 MXBA0706 700 600 595 495 6500 MXBA0708 700 800 595 695 6500 MXBA0709 700 900 595 795 6500 MXBA0710 700 1000 595 895 6500 MXBA0712 700 1200 595 1095 6500 MXBA1404 1400 400 1295 295 6500 MXBA1405 1400 500 1295 395 6500 MXBA1406 1400 600 1295 495 6500 MXBA1408 1400 800 1295 695 6500 MXBA1409 1400 900 1295 795 6500 MXBA1410 1400 1000 1295 895 6500 MXBA1412 1400 1200 1295 1095 6500 MXBA1604 1600 400 1495 295 6500 MXBA1605 1600 500 1495 395 6500 MXBA1606 1600 600 1495 495 6500 MXBA1608 1600 800 1495 695 6500 MXBA1609 1600 900 1495 795 6500 MXBA1610 1600 1000 1495 895 6500 MXBA1612 1600 1200 1495 1095 6500 MXBA1804 1800 400 1695 295 6500 MXBA1805 1800 500 1695 395 6500 MXBA1806 1800 600 1695 495 6500 MXBA1808 1800 800 1695 695 6500 MXBA1809 1800 900 1695 795 6500 MXBA1810 1800 1000 1695 895 6500 MXBA1812 1800 1200 1695 1095 6500 MXBA2004 2000 400 1895 295 6500 MXBA2005 2000 500 1895 395 6500 MXBA2006 2000 600 1895 495 6500 MXBA2008 2000 800 1895 695 6500 MXBA2009 2000 900 1895 795 6500 MXBA2010 2000 1000 1895 895 6500 MXBA2012 2000 1200 1895 1095 6500 MXBA2205 2200 500 2095 395 6500 MXBA2206 2200 600 2095 495 6500 MXBA2208 2200 800 2095 695 6500 MXBA2209 2200 900 2095 795 6500 MXBA2210 2200 1000 2095 895 6500 MXBA2212 2200 1200 2095 1095 CATALOG NUMBERDIMENSIONSH D A BNOMINAL DIMENSIONSH D A BCATALOG NOMINALNUMBERp.86 p.88
