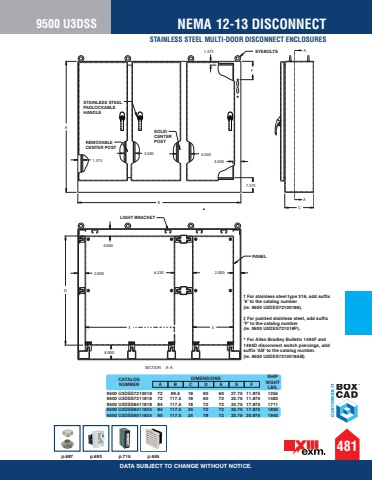

4819500 U3DSS NEMA 12-13 DISCONNECTDATA SUBJECT TO CHANGE WITHOUT NOTICE.SECTION A-ADLIGHT BRACKET2.000PANELB7.3753.5003.5001.375REMOVABLECENTER POSTAAACSTAINLESS STEELPADLOCKABLEHANDLE2.0004.000E8.000S4.500SOLIDCENTERPOST1.375 EYEBOLTS6.250FCATALOG NUMBER A B C D E S FDIMENSIONS SHIP WGHT LBS.9500 U3DSS7210018 72 99.5 18 60 60 27.75 11.875 1255 9500 U3DSS7211818 72 117.5 18 60 72 33.75 11.875 1483 9500 U3DSS8411818 84 117.5 18 72 72 33.75 17.875 1711 9500 U3DSS8411824 84 117.5 24 72 72 33.75 17.875 1826 9500 U3DSS9011824 90 117.5 24 78 72 33.75 20.875 1940%u2020 For stainless steel type 316, add suffix %u20186%u2019 to the catalog number (ie. 9500 U3DSS72100186). %u2021 For painted stainless steel, add suffix %u2018P%u2019 to the catalog number (ie. 9500 U3DSS721018P). * For Allen Bradley Bulletin 1494F and 1494D disconnect switch piercings, add suffix %u2018AB%u2019 to the catalog number. (ie. 9500 U3DSS7210018AB)p.687 p.693 p.715 p.655STAINLESS STEEL MULTI-DOOR DISCONNECT ENCLOSURES9500 U2DSS
