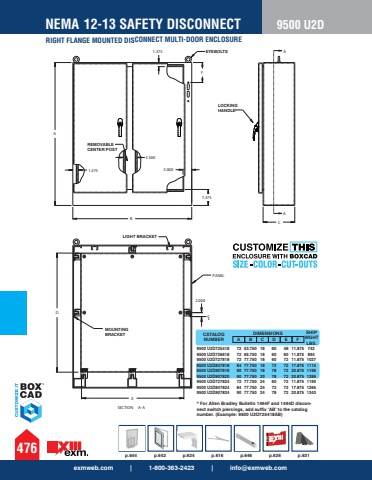

exmweb.com | 1-800-363-2423 | [email protected] 12-13 SAFETY DISCONNECT4769500 U2DSECTION A-ALIGHT BRACKETDCEMOUNTINGBRACKETL2.000PANELB7.3753.0003.5001.375REMOVABLECENTER POSTA1.375 EYEBOLTSFAACLOCKINGHANDLECATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS.9500 U2D725418 72 53.750 18 60 48 11.875 742 9500 U2D726618 72 65.750 18 60 60 11.875 894 9500 U2D727818 72 77.750 18 60 72 11.875 1027 9500 U2D847818 84 77.750 18 72 72 17.875 1110 9500 U2D907818 90 77.750 18 78 72 20.875 1196 9500 U2D907820 90 77.750 20 78 72 20.875 1286 9500 U2D727824 72 77.750 24 60 72 11.875 1190 9500 U2D847824 84 77.750 24 72 72 17.875 1265 9500 U2D907824 90 77.750 24 78 72 20.875 1343 * For Allen Bradley Bulletin 1494F and 1494D disconnect switch piercings, add suffix %u2018AB%u2019 to the catalog number. (Example: 9500 U2D725418AB) p.644 p.642 p.624 p.616 p.646 p.626 p.631RIGHT FLANGE MOUNTED DISCONNECT MULTI-DOOR ENCLOSURE
