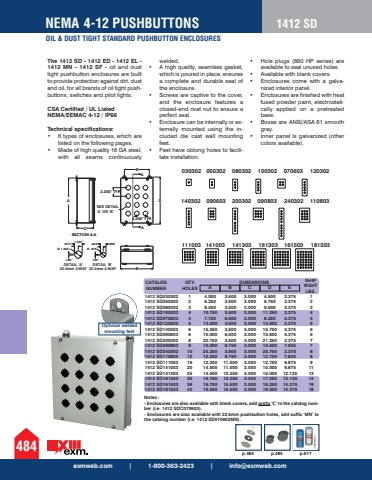

exmweb.com | 1-800-363-2423 | [email protected] 4-12 PUSHBUTTONSOIL & DUST TIGHT STANDARD PUSHBUTTON ENCLOSURES4841412 SDThe 1412 SD - 1412 ED - 1412 EL -1412 MN - 1412 SF - oil and dust tight pushbutton enclosures are built to provide protection against dirt, dust and oil, for all brands of oil tight pushbuttons, switches and pilot lights. CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66 Technical specifications: %u2022 6 types of enclosures, which arelisted on the following pages.%u2022 Made of high quality 16 GA steel,with all seams continuouslywelded. %u2022 A high quality, seamless gasket,which is poured in place, ensuresa complete and durable seal ofthe enclosure.%u2022 Screws are captive to the cover,and the enclosure features aclosed-end rivet nut to ensure aperfect seal.%u2022 Enclosure can be internally or externally mounted using the included die cast wall mountingfeet.%u2022 Feet have oblong holes to facilitate installation.%u2022 Hole plugs (880 HP series) areavailable to seal unused holes.%u2022 Available with blank covers.%u2022 Enclosures come with a galvanized interior panel.%u2022 Enclosures are finished with heatfused powder paint, electrostatically applied on a pretreatedbase.%u2022 Boxes are ANSI/ASA 61 smoothgray.%u2022 Inner panel is galvanized (othercolors available).2.250%u201dTYP.2.250%u201d TYP. ..484%u201d .968%u201d.125%u201d%u00d8 .875%u201d.672%u201d%u00d8 1.203%u201d.190%u201d1.344%u201dAADEBCASECTION A-ASEE DETAIL%u2018A%u2019 OR %u2018B%u2019DETAIL %u2018A%u201930.5mm 4-WAYDETAIL %u2018B%u201922.5mm 4-WAY030302 050302 080302 100302 070603 120302140302 090603 200302 090803 240302 110803111003 141003 141303 161303 161503 181503CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.1412 SD030302 1 4.000 3.500 3.000 4.500 2.375 1 1412 SD050302 2 6.250 3.500 3.000 6.750 2.375 2 1412 SD080302 3 8.500 3.500 3.000 9.000 2.375 3 1412 SD100302 4 10.750 3.500 3.000 11.250 2.375 4 1412 SD070603 4 7.750 6.500 3.000 8.250 5.375 4 1412 SD120302 5 13.000 3.500 3.000 13.500 2.375 5 1412 SD140302 6 15.250 3.500 3.000 15.750 2.375 6 1412 SD090603 6 10.000 6.500 3.000 10.500 5.375 5 1412 SD200302 8 20.750 3.500 3.000 21.250 2.375 7 1412 SD090803 9 10.000 8.750 3.000 10.500 7.625 7 1412 SD240302 10 25.250 3.500 3.000 25.750 2.375 8 1412 SD110803 12 12.250 8.750 3.000 12.750 7.625 8 1412 SD111003 16 12.250 11.000 3.000 12.750 9.875 9 1412 SD141003 20 14.500 11.000 3.000 15.000 9.875 11 1412 SD141303 25 14.500 13.250 3.000 15.000 12.125 13 1412 SD161303 30 16.750 13.250 3.000 17.250 12.125 14 1412 SD161503 36 16.750 15.500 3.000 16.250 14.375 16 1412 SD181503 42 19.000 15.500 3.000 19.500 14.375 18QTY. HOLESNotes : - Enclosures are also available with blank covers, add prefix %u2018C%u2019 to the catalog number (i.e. 1412 SDC070603).- Enclosures are also available with 22.5mm pushbutton holes, add suffix %u2018MN%u2019 tothe catalog number (i.e. 1412 SD070603MN).Optional welded mounting feetp.484 p.484 p.617
