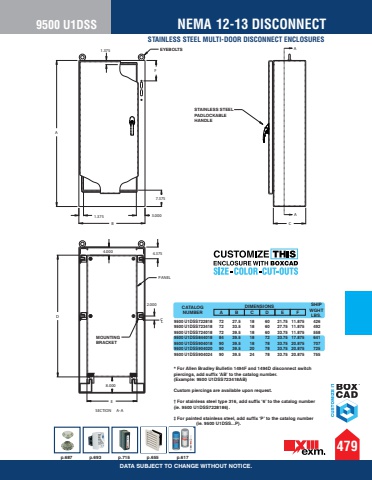

STAINLESS STEEL MULTI-DOOR DISCONNECT ENCLOSURES4799500 U1DSS NEMA 12-13 DISCONNECTSECTION A-AE8.000MOUNTINGBRACKETL2.000DPANEL4.375 4.0001.375B3.0007.375A1.375FSTAINLESS STEELPADLOCKABLEHANDLEAACCEYEBOLTSCATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS.9500 U1DSS722818 72 27.5 18 60 21.75 11.875 426 9500 U1DSS723418 72 33.5 18 60 27.75 11.875 492 9500 U1DSS724018 72 39.5 18 60 33.75 11.875 558 9500 U1DSS844018 84 39.5 18 72 33.75 17.875 641 9500 U1DSS904018 90 39.5 18 78 33.75 20.875 707 9500 U1DSS904020 90 39.5 20 78 33.75 20.875 725 9500 U1DSS904024 90 39.5 24 78 33.75 20.875 755 * For Allen Bradley Bulletin 1494F and 1494D disconnect switch piercings, add suffix %u2018AB%u2019 to the catalog number. (Example: 9500 U1DSS723418AB) Custom piercings are available upon request. %u2020 For stainless steel type 316, add suffix %u20186%u2019 to the catalog number (ie. 9500 U1DSS7228186). %u2021 For painted stainless steel, add suffix %u2018P%u2019 to the catalog number (ie. 9500 U1DSS...P). p.687 p.693 p.715 p.655 p.617DATA SUBJECT TO CHANGE WITHOUT NOTICE.
