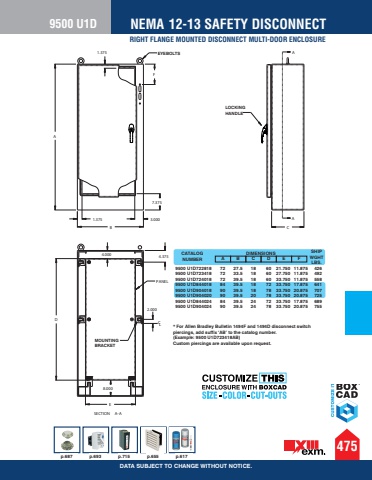

475NEMA 12-13 SAFETY DISCONNECTRIGHT FLANGE MOUNTED DISCONNECT MULTI-DOOR ENCLOSURE9500 U1DSECTION A-AE8.000MOUNTINGBRACKETCL2.000DPANEL4.375 4.0001.375B3.0007.375A1.375 EYEBOLTSFLOCKINGHANDLEAACCATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS.9500 U1D722818 72 27.5 18 60 21.750 11.875 426 9500 U1D723418 72 33.5 18 60 27.750 11.875 492 9500 U1D724018 72 39.5 18 60 33.750 11.875 558 9500 U1D844018 84 39.5 18 72 33.750 17.875 641 9500 U1D904018 90 39.5 18 78 33.750 20.875 707 9500 U1D904020 90 39.5 20 78 33.750 20.875 725 9500 U1D844024 84 39.5 24 72 33.750 17.875 689 9500 U1D904024 90 39.5 24 78 33.750 20.875 755* For Allen Bradley Bulletin 1494F and 1494D disconnect switch piercings, add suffix %u2018AB%u2019 to the catalog number. (Example: 9500 U1D723418AB) Custom piercings are available upon request.p.687 p.693 p.715 p.655 p.617DATA SUBJECT TO CHANGE WITHOUT NOTICE.
