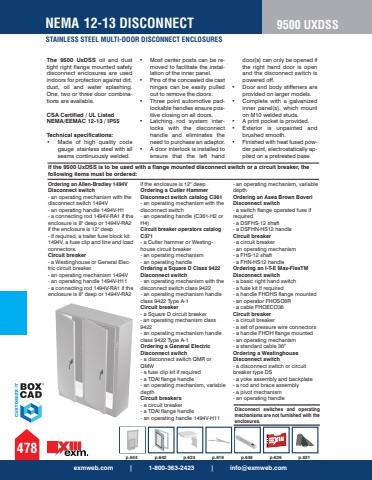

NEMA 12-13 DISCONNECTSTAINLESS STEEL MULTI-DOOR DISCONNECT ENCLOSURES4789500 UXDSSThe 9500 UxDSS oil and dust tight right flange mounted safety disconnect enclosures are used indoors for protection against dirt, dust, oil and water splashing. One, two or three door combinations are available. CSA Certified / UL Listed NEMA/EEMAC 12-13 / IP55 Technical specifications:%u2022 Made of high quality code gauge stainless steel with all seams continuously welded. %u2022 Most center posts can be removed to facilitate the installation of the inner panel. %u2022 Pins of the concealed die cast hinges can be easily pulled out to remove the doors. %u2022 Three point automotive padlockable handles ensure positive closing on all doors. %u2022 Latching rod system interlocks with the disconnect handle and eliminates the need to purchase an adaptor. %u2022 A door interlock is installed to ensure that the left hand door(s) can only be opened if the right hand door is open and the disconnect switch is powered off. %u2022 Door and body stiffeners are provided on larger models. %u2022 Complete with a galvanized inner panel(s), which mount on M10 welded studs. %u2022 A print pocket is provided. %u2022 Exterior is unpainted and brushed smooth. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. Ordering an Allen-Bradley 1494V Disconnect switch- an operating mechanism with the disconnect switch 1494V - an operating handle 1494V-H1 - a connecting rod 1494V-RA1 if the enclosure is 8\if the enclosure is 12\- if required, a trailer fuse block kit 1494V, a fuse clip and line and load connectors. Circuit breaker - a Westinghouse or General Electric circuit breaker. - an operating mechanism 1494V - an operating handle 1494V-H11 - a connecting rod 1494V-RA1 if the enclosure is 8\if the enclosure is 12\Ordering a Cutler Hammer Disconnect switch catalog C361 - an operating mechanism with the disconnect switch - an operating handle (C361-H2 or H4) Circuit breaker operators catalog C371 - a Cutler hammer or Westinghouse circuit breaker - an operating mechanism - an operating handle Ordering a Square D Class 9422Disconnect switch - an operating mechanism with the disconnect switch class 9422 - an operating mechanism handle class 9422 Type A-1 Circuit breaker - a Square D circuit breaker - an operating mechanism class 9422 - an operating mechanism handle class 9422 Type A-1 Ordering a General Electric Disconnect switch - a disconnect switch QMR or QMW - a fuse clip kit if required - a TDAI flange handle - an operating mechanism, variable depth Circuit breakers - a circuit breaker - a TDAI flange handle - an operating handle 1494V-H11 - an operating mechanism, variable depth Ordering an Asea Brown Boveri Disconnect switch- a switch flange operated fuse if required - a DSFHS-12 shaft - a DSFHN-HS12 handle Circuit breaker - a circuit breaker - an operating mechanism - a FHS-12 shaft - a FHN-HS12 handle Ordering an I-T-E Max-FlexTM Disconnect switch - a basic right hand switch - a fuse kit if required - a handle FHOHS flange mounted - an operator FHOSO6R - a cable FHOECO36 Circuit breaker - a circuit breaker - a set of pressure wire connectors - a handle FHOH flange mounted - an operating mechanism - a standard cable 36\Ordering a Westinghouse Disconnect switch - a disconnect switch or circuit breaker type DS - a yoke assembly and backplate - a rod and brace assembly - a pivot mechanism - an operating handle If the 9500 UxDSS is to be used with a flange mounted disconnect switch or a circuit breaker, the following items must be ordered: Disconnect switches and operating mechanisms are not furnished with the enclosures.p.644 p.642 p.624 p.616 p.646 p.626 p.631exmweb.com | 1-800-363-2423 | [email protected]
