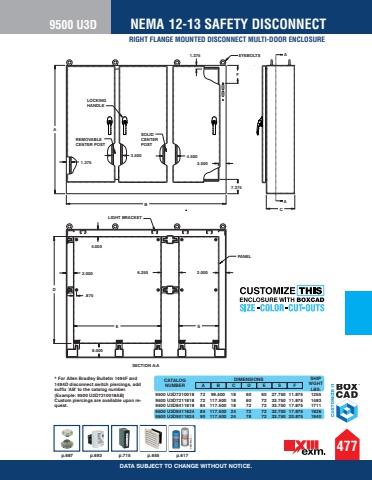

4779500 U3D NEMA 12-13 SAFETY DISCONNECTDATA SUBJECT TO CHANGE WITHOUT NOTICE.SECTION A-ADLIGHT BRACKET2.000PANELB7.3753.5003.5001.375REMOVABLECENTER POSTAAACLOCKINGHANDLE.8752.0004.0006.250E8.000SF4.500SOLIDCENTERPOST1.375 EYEBOLTSCATALOG NUMBER A B C D E S FDIMENSIONS SHIP WGHT LBS.9500 U3D7210018 72 99.500 18 60 60 27.750 11.875 1255 9500 U3D7211818 72 117.500 18 60 72 33.750 11.875 1483 9500 U3D8411818 84 117.500 18 72 72 33.750 17.875 1711 9500 U3D8411824 84 117.500 24 72 72 33.750 17.875 1826 9500 U3D9011824 90 117.500 24 78 72 33.750 20.875 1940p.687 p.693 p.715 p.655 p.617* For Allen Bradley Bulletin 1494F and 1494D disconnect switch piercings, add suffix %u2018AB%u2019 to the catalog number. (Example: 9500 U3D7210018AB) Custom piercings are available upon request.RIGHT FLANGE MOUNTED DISCONNECT MULTI-DOOR ENCLOSURE
