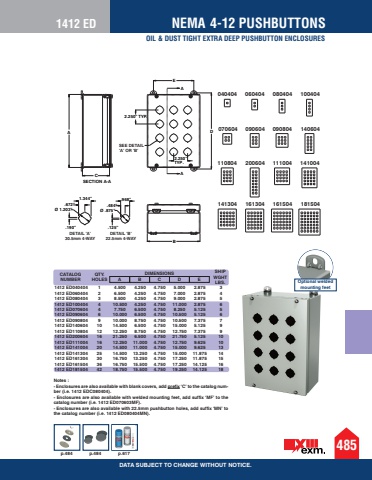

485NEMA 4-12 PUSHBUTTONSOIL & DUST TIGHT EXTRA DEEP PUSHBUTTON ENCLOSURES1412 EDDATA SUBJECT TO CHANGE WITHOUT NOTICE.1.344%u201d.190%u201d%u00d8 1.203%u201d.672%u201d%u00d8 .875%u201d.125%u201d.968%u201d.484%u201d2.250%u201d TYP.2.250%u201dTYP.ACBEDAASECTION A-ASEE DETAIL%u2018A%u2019 OR %u2018B%u2019DETAIL %u2018A%u201930.5mm 4-WAYDETAIL %u2018B%u201922.5mm 4-WAYCATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.1412 ED040404 1 4.500 4.250 4.750 5.000 2.875 3 1412 ED060404 2 6.500 4.250 4.750 7.000 2.875 4 1412 ED080404 3 8.500 4.250 4.750 9.000 2.875 5 1412 ED100404 4 10.500 4.250 4.750 11.000 2.875 6 1412 ED070604 4 7.750 6.500 4.750 8.250 5.125 5 1412 ED090604 6 10.000 6.500 4.750 10.500 5.125 6 1412 ED090804 9 10.000 8.750 4.750 10.500 7.375 7 1412 ED140604 10 14.500 6.500 4.750 15.000 5.125 9 1412 ED110804 12 12.250 8.750 4.750 12.750 7.375 9 1412 ED200604 16 21.250 6.500 4.750 21.750 5.125 10 1412 ED111004 16 12.250 11.000 4.750 12.750 9.625 10 1412 ED141004 20 14.500 11.000 4.750 15.000 9.625 13 1412 ED141304 25 14.500 13.250 4.750 15.000 11.875 14 1412 ED161304 30 16.750 13.250 4.750 17.250 11.875 15 1412 ED161504 36 16.750 15.500 4.750 17.250 14.125 16 1412 ED181504 42 18.750 15.500 4.750 19.250 14.125 18QTY. HOLESNotes : - Enclosures are also available with blank covers, add prefix %u2018C%u2019 to the catalog number (i.e. 1412 EDC080404). - Enclosures are also available with welded mounting feet, add suffix %u2018MF%u2019 to the catalog number (i.e. 1412 ED070603MF). - Enclosures are also available with 22.5mm pushbutton holes, add suffix %u2018MN%u2019 to the catalog number (i.e. 1412 ED080404MN).p.484 p.484 p.617040404 060404 080404 100404070604 090604 090804 140604110804 200604 111004 141004141304 161304 161504 181504Optional welded mounting feet
