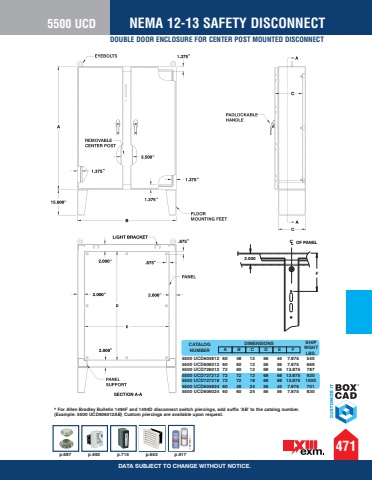

p.687 p.693 p.715 p.653 p.617DOUBLE DOOR ENCLOSURE FOR CENTER POST MOUNTED DISCONNECT5500 UCD NEMA 12-13 SAFETY DISCONNECTFCL OF PANEL2.000* For Allen Bradley Bulletin 1494F and 1494D disconnect switch piercings, add suffix %u2018AB%u2019 to the catalog number. (Example: 5500 UCD606012AB) Custom piercings are available upon request.471DATA SUBJECT TO CHANGE WITHOUT NOTICE.CATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS.5500 UCD604812 60 48 12 56 44 7.875 540 5500 UCD606012 60 60 12 56 56 7.875 669 5500 UCD726012 72 60 12 68 56 13.875 787 5500 UCD727212 72 72 12 68 68 13.875 920 5500 UCD727218 72 72 18 68 68 13.875 1000 5500 UCD604824 60 48 24 56 44 7.875 701 5500 UCD606024 60 60 24 56 56 7.875 830
