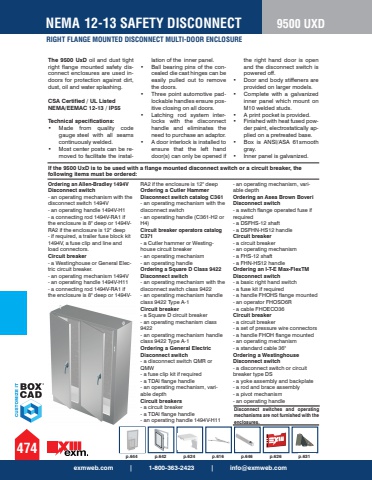

                                    NEMA 12-13 SAFETY DISCONNECTRIGHT FLANGE MOUNTED DISCONNECT MULTI-DOOR ENCLOSURE4749500 UXDThe 9500 UxD oil and dust tight right flange mounted safety disconnect enclosures are used indoors for protection against dirt, dust, oil and water splashing. CSA Certified / UL Listed NEMA/EEMAC 12-13 / IP55 Technical specifications:%u2022 Made from quality code gauge steel with all seams continuously welded. %u2022 Most center posts can be removed to facilitate the installation of the inner panel. %u2022 Ball bearing pins of the concealed die cast hinges can be easily pulled out to remove the doors. %u2022 Three point automotive padlockable handles ensure positive closing on all doors. %u2022 Latching rod system interlocks with the disconnect handle and eliminates the need to purchase an adaptor. %u2022 A door interlock is installed to ensure that the left hand door(s) can only be opened if the right hand door is open and the disconnect switch is powered off. %u2022 Door and body stiffeners are provided on larger models. %u2022 Complete with a galvanized inner panel which mount on M10 welded studs. %u2022 A print pocket is provided. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Box is ANSI/ASA 61smooth gray. %u2022 Inner panel is galvanized.Ordering an Allen-Bradley 1494V Disconnect switch- an operating mechanism with the disconnect switch 1494V - an operating handle 1494V-H1 - a connecting rod 1494V-RA1 if the enclosure is 8\RA2 if the enclosure is 12\- if required, a trailer fuse block kit 1494V, a fuse clip and line and load connectors. Circuit breaker - a Westinghouse or General Electric circuit breaker. - an operating mechanism 1494V - an operating handle 1494V-H11 - a connecting rod 1494V-RA1 if the enclosure is 8\RA2 if the enclosure is 12\Ordering a Cutler Hammer Disconnect switch catalog C361 - an operating mechanism with the disconnect switch - an operating handle (C361-H2 or H4) Circuit breaker operators catalog C371 - a Cutler hammer or Westinghouse circuit breaker - an operating mechanism - an operating handle Ordering a Square D Class 9422Disconnect switch - an operating mechanism with the disconnect switch class 9422 - an operating mechanism handle class 9422 Type A-1 Circuit breaker - a Square D circuit breaker - an operating mechanism class 9422 - an operating mechanism handle class 9422 Type A-1 Ordering a General Electric Disconnect switch - a disconnect switch QMR or QMW - a fuse clip kit if required - a TDAI flange handle - an operating mechanism, variable depth Circuit breakers - a circuit breaker - a TDAI flange handle - an operating handle 1494V-H11 - an operating mechanism, variable depth Ordering an Asea Brown Boveri Disconnect switch - a switch flange operated fuse if required - a DSFHS-12 shaft - a DSFHN-HS12 handle Circuit breaker - a circuit breaker - an operating mechanism - a FHS-12 shaft - a FHN-HS12 handle Ordering an I-T-E Max-FlexTM Disconnect switch - a basic right hand switch - a fuse kit if required - a handle FHOHS flange mounted - an operator FHOSO6R - a cable FHOECO36 Circuit breaker - a circuit breaker - a set of pressure wire connectors - a handle FHOH flange mounted - an operating mechanism - a standard cable 36\Ordering a Westinghouse Disconnect switch- a disconnect switch or circuit breaker type DS - a yoke assembly and backplate - a rod and brace assembly - a pivot mechanism - an operating handle If the 9500 UxD is to be used with a flange mounted disconnect switch or a circuit breaker, the following items must be ordered: Disconnect switches and operating mechanisms are not furnished with the enclosures.p.644 p.642 p.624 p.616 p.646 p.626 p.631exmweb.com | 1-800-363-2423 | [email protected]
