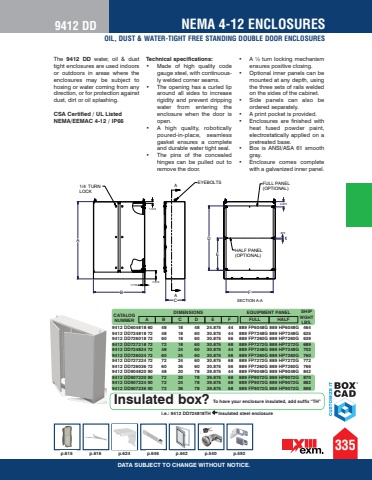

SECTION A-AAAABCDF4.875EYEBOLTSEFULL PANEL (OPTIONAL) HALF PANEL (OPTIONAL).875q1/4 TURN LOCK1.6191.719 7.619NEMA 4-12 ENCLOSURESOIL, DUST & WATER-TIGHT FREE STANDING DOUBLE DOOR ENCLOSURES9412 DDThe 9412 DD water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66 Technical specifications: %u2022 Made of high quality code gauge steel, with continuously welded corner seams. %u2022 The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. %u2022 A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable water tight seal. %u2022 The pins of the concealed hinges can be pulled out to remove the door. %u2022 A %u00bc turn locking mechanism ensures positive closing. %u2022 Optional inner panels can be mounted at any depth, using the three sets of rails welded on the sides of the cabinet. %u2022 Side panels can also be ordered separately. %u2022 A print pocket is provided. %u2022 Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Box is ANSI/ASA 61 smooth gray. %u2022 Enclosure comes complete with a galvanized inner panel. CATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS. FULL HALFEQUIPMENT PANEL9412 DD604818 60 48 18 48 24.875 44 889 FP6048G 889 HP6048G 464 9412 DD724818 72 48 18 60 30.875 44 889 FP7248G 889 HP7248G 625 9412 DD726018 72 60 18 60 30.875 56 889 FP7260G 889 HP7260G 639 9412 DD727218 72 72 18 60 30.875 68 889 FP7272G 889 HP7272G 689 9412 DD724824 72 48 24 60 30.875 44 889 FP7248G 889 HP7248G 702 9412 DD726024 72 60 24 60 30.875 56 889 FP7260G 889 HP7260G 760 9412 DD727224 72 72 24 60 30.875 68 889 FP7272G 889 HP7272G 772 9412 DD726036 72 60 36 60 30.875 56 889 FP7260G 889 HP7260G 766 9412 DD904820 90 48 20 78 39.875 44 889 FP9048G 889 HP9048G 842 9412 DD907220 90 72 20 78 39.875 68 889 FP9072G 889 HP9072G 870 9412 DD907224 90 72 24 78 39.875 68 889 FP9072G 889 HP9072G 882 9412 DD907236 90 72 36 78 39.875 68 889 FP9072G 889 HP9072G 898p.615 p.616 p.624 p.646 p.642 p.540 p.592Insulated box? To have your enclosure insulated, add suffix %u201cTH%u201di.e.: 9412 DD724818TH %uf0b0 Insulated steel enclosure335DATA SUBJECT TO CHANGE WITHOUT NOTICE.
