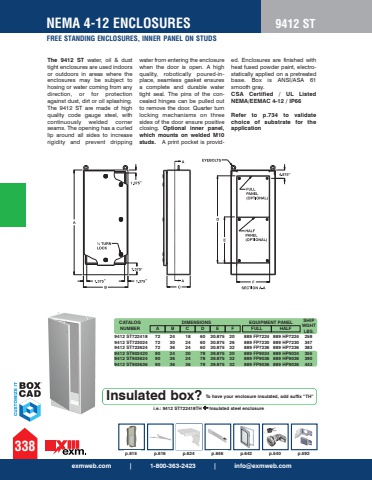

The 9412 ST water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 9412 ST are made of high quality code gauge steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-inplace, seamless gasket ensures a complete and durable water tight seal. The pins of the concealed hinges can be pulled out to remove the door. Quarter turn locking mechanisms on three sides of the door ensure positive closing. Optional inner panel, which mounts on welded M10 studs. A print pocket is provided. Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray. CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66 Refer to p.734 to validate choice of substrate for the applicationInsulated box? To have your enclosure insulated, add suffix %u201cTH%u201di.e.: 9412 ST722418TH %uf0b0 Insulated steel enclosurep.615 p.616 p.624 p.646 p.642 p.540 p.592CATALOG NUMBER A B C D E FDIMENSIONS SHIPWGHTLBS. FULL HALFEQUIPMENT PANEL9412 ST722418 72 24 18 60 30.875 20 889 FP7224 889 HP7224 258 9412 ST723024 72 30 24 60 30.875 26 889 FP7230 889 HP7230 347 9412 ST723624 72 36 24 60 30.875 32 889 FP7236 889 HP7236 383 9412 ST902420 90 24 20 78 39.875 20 889 FP9024 889 HP9024 355 9412 ST903624 90 36 24 78 39.875 32 889 FP9036 889 HP9036 390 9412 ST903636 90 36 36 78 39.875 32 889 FP9036 889 HP9036 443NEMA 4-12 ENCLOSURESFREE STANDING ENCLOSURES, INNER PANEL ON STUDS9412 STexmweb.com | 1-800-363-2423 | [email protected]%u201d%u201d%u201d %u201d%u201d
