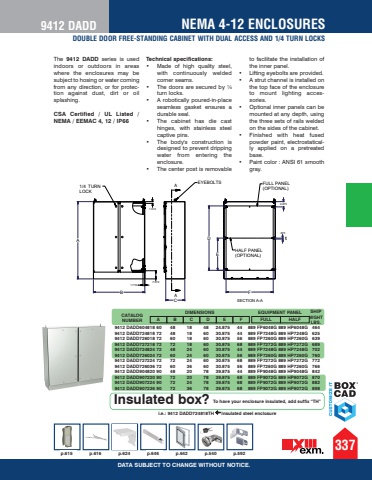

SECTION A-AAAABCDF4.875EYEBOLTSEFULL PANEL (OPTIONAL) HALF PANEL (OPTIONAL).875q1/4 TURN LOCK1.6191.719 7.619NEMA 4-12 ENCLOSURESDOUBLE DOOR FREE-STANDING CABINET WITH DUAL ACCESS AND 1/4 TURN LOCKS9412 DADDThe 9412 DADD series is used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4, 12 / IP66 Technical specifications: %u2022 Made of high quality steel, with continuously welded corner seams.%u2022 The doors are secured by %u00bc turn locks. %u2022 A robotically poured-in-place seamless gasket ensures a durable seal. %u2022 The cabinet has die cast hinges, with stainless steel captive pins. %u2022 The body's construction is designed to prevent dripping water from entering the enclosure.%u2022 The center post is removable to facilitate the installation of the inner panel. %u2022 Lifting eyebolts are provided. %u2022 A strut channel is installed on the top face of the enclosure to mount lighting accessories. %u2022 Optional inner panels can be mounted at any depth, using the three sets of rails welded on the sides of the cabinet.%u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base.%u2022 Paint color : ANSI 61 smooth gray.CATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS. FULL HALFEQUIPMENT PANEL9412 DADD604818 60 48 18 48 24.875 44 889 FP6048G 889 HP6048G 464 9412 DADD724818 72 48 18 60 30.875 44 889 FP7248G 889 HP7248G 625 9412 DADD726018 72 60 18 60 30.875 56 889 FP7260G 889 HP7260G 639 9412 DADD727218 72 72 18 60 30.875 68 889 FP7272G 889 HP7272G 689 9412 DADD724824 72 48 24 60 30.875 44 889 FP7248G 889 HP7248G 702 9412 DADD726024 72 60 24 60 30.875 56 889 FP7260G 889 HP7260G 760 9412 DADD727224 72 72 24 60 30.875 68 889 FP7272G 889 HP7272G 772 9412 DADD726036 72 60 36 60 30.875 56 889 FP7260G 889 HP7260G 766 9412 DADD904820 90 48 20 78 39.875 44 889 FP9048G 889 HP9048G 842 9412 DADD907220 90 72 20 78 39.875 68 889 FP9072G 889 HP9072G 870 9412 DADD907224 90 72 24 78 39.875 68 889 FP9072G 889 HP9072G 882 9412 DADD907236 90 72 36 78 39.875 68 889 FP9072G 889 HP9072G 898p.615 p.616 p.624 p.646 p.642 p.540 p.592Insulated box? To have your enclosure insulated, add suffix %u201cTH%u201di.e.: 9412 DADD724818TH %uf0b0 Insulated steel enclosure337DATA SUBJECT TO CHANGE WITHOUT NOTICE.
