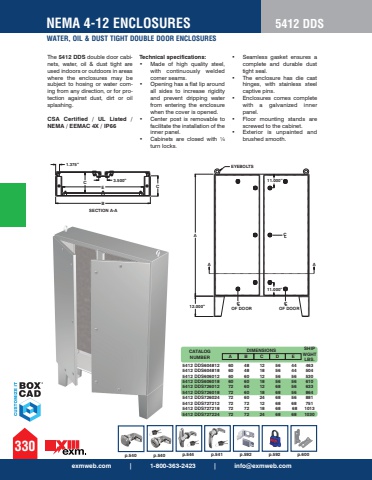

CLOF DOORCLOF DOOR11.000%u201d11.000%u201dC3.500%u201d1.375%u201dA AA12.000%u201dBECSECTION A-ACLEYEBOLTSp.541 p.592 p.592 p.600The 5412 DDS double door cabinets, water, oil & dust tight are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4X / IP66 Technical specifications: %u2022 Made of high quality steel, with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. %u2022 Center post is removable to facilitate the installation of the inner panel. %u2022 Cabinets are closed with %u00bc turn locks. %u2022 Seamless gasket ensures a complete and durable dust tight seal. %u2022 The enclosure has die cast hinges, with stainless steel captive pins. %u2022 Enclosures comes complete with a galvanized inner panel. %u2022 Floor mounting stands are screwed to the cabinet. %u2022 Exterior is unpainted and brushed smooth.A B C D ECATALOG DIMENSIONSNUMBERSHIP WGHT LBS.5412 DDS604812 60 48 12 56 44 463 5412 DDS604818 60 48 18 56 44 504 5412 DDS606012 60 60 12 56 56 530 5412 DDS606018 60 60 18 56 56 610 5412 DDS726012 72 60 12 68 56 633 5412 DDS726018 72 60 18 68 56 864 5412 DDS726024 72 60 24 68 56 881 5412 DDS727212 72 72 12 68 68 751 5412 DDS727218 72 72 18 68 68 1013 5412 DDS727224 72 72 24 68 68 1030NEMA 4-12 ENCLOSURESWATER, OIL & DUST TIGHT DOUBLE DOOR ENCLOSURES5412 DDS330exmweb.com | 1-800-363-2423 | [email protected] p.540 p.544
