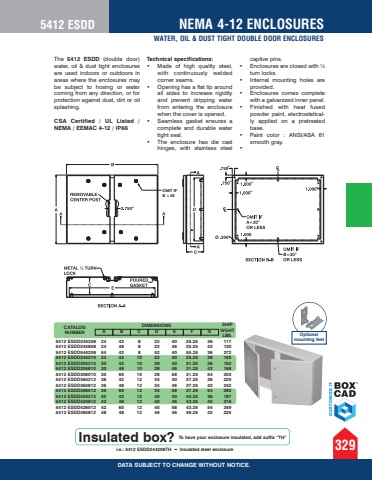

The 5412 ESDD (double door) water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality steel,with continuously weldedcorner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is opened.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure has die casthinges, with stainless steelcaptive pins. %u2022 Enclosures are closed with %u00bcturn locks.%u2022 Internal mounting holes areprovided.%u2022 Enclosures comes completewith a galvanized inner panel.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : ANSI/ASA 61smooth gray.%u2022%u201d%u201d%u201d%u201d%u201d%u201d%u201d OMIT IFB < 48CATALOG NUMBER A B C D E F GDIMENSIONS SHIP WGHT LBS.5412 ESDD244208 24 42 8 22 40 25.25 36 117 5412 ESDD244808 24 48 8 22 46 25.25 42 130 5412 ESDD544208 54 42 8 52 40 55.25 36 272 5412 ESDD244210 24 42 10 22 40 25.25 36 150 5412 ESDD304210 30 42 10 28 40 31.25 36 152 5412 ESDD304810 30 48 10 28 46 31.25 42 168 5412 ESDD306010 30 60 10 28 58 31.25 54 203 5412 ESDD364212 36 42 12 34 40 37.25 36 220 5412 ESDD364812 36 48 12 34 46 37.25 42 242 5412 ESDD366012 36 60 12 34 58 37.25 54 292 5412 ESDD424212 42 42 12 40 40 43.25 36 197 5412 ESDD424812 42 48 12 40 46 43.25 42 216 5412 ESDD426012 42 60 12 40 58 43.25 54 349 5412 ESDD484812 48 48 12 46 46 49.25 42 225Optional mounting feet5412 ESDDInsulated box? To have your enclosure insulated, add suffix %u201cTH%u201di.e.: 5412 ESDD244208TH %uf0b0 Insulated steel enclosure 329DATA SUBJECT TO CHANGE WITHOUT NOTICE.NEMA 4-12 ENCLOSURESWATER, OIL & DUST TIGHT DOUBLE DOOR ENCLOSURES
