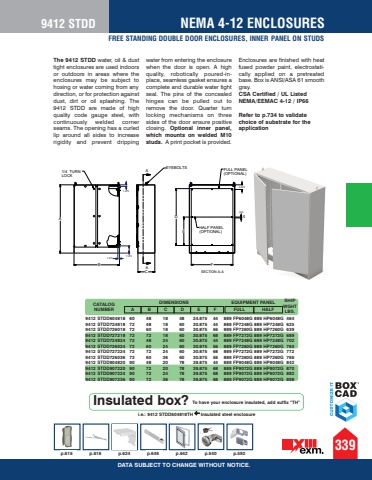

The 9412 STDD water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 9412 STDD are made of high quality code gauge steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-inplace, seamless gasket ensures a complete and durable water tight seal. The pins of the concealed hinges can be pulled out to remove the door. Quarter turn locking mechanisms on three sides of the door ensure positive closing. Optional inner panel, which mounts on welded M10 studs. A print pocket is provided. Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray.CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66 Refer to p.734 to validate choice of substrate for the applicationp.615 p.616 p.624 p.646 p.642 p.540 p.592Insulated box? To have your enclosure insulated, add suffix %u201cTH%u201di.e.: 9412 ST DD604818TH %uf0b0 Insulated steel enclosureCATALOG NUMBER A B C D E FDIMENSIONS SHIP WGHT LBS. FULL HALFEQUIPMENT PANEL9412 ST DD604818 60 48 18 48 24.875 44 889 FP6048G 889 HP6048G 464 9412 STDD724818 72 48 18 60 30.875 44 889 FP7248G 889 HP7248G 625 9412 STDD726018 72 60 18 60 30.875 56 889 FP7260G 889 HP7260G 639 9412 STDD727218 72 72 18 60 30.875 68 889 FP7272G 889 HP7272G 689 9412 STDD724824 72 48 24 60 30.875 44 889 FP7248G 889 HP7248G 702 9412 STDD726024 72 60 24 60 30.875 56 889 FP7260G 889 HP7260G 760 9412 STDD727224 72 72 24 60 30.875 68 889 FP7272G 889 HP7272G 772 9412 STDD726036 72 60 36 60 30.875 56 889 FP7260G 889 HP7260G 766 9412 STDD904820 90 48 20 78 39.875 44 889 FP9048G 889 HP9048G 842 9412 STDD907220 90 72 20 78 39.875 68 889 FP9072G 889 HP9072G 870 9412 STDD907224 90 72 24 78 39.875 68 889 FP9072G 889 HP9072G 882 9412 STDD907236 90 72 36 78 39.875 68 889 FP9072G 889 HP9072G 898 9412 STDD NEMA 4-12 ENCLOSURESFREE STANDING DOUBLE DOOR ENCLOSURES, INNER PANEL ON STUDS339DATA SUBJECT TO CHANGE WITHOUT NOTICE.SECTION A-AAAABCDF4.875EYEBOLTSEFULL PANEL (OPTIONAL) HALF PANEL (OPTIONAL).875q1/4 TURN LOCK1.3751.375 7.375
