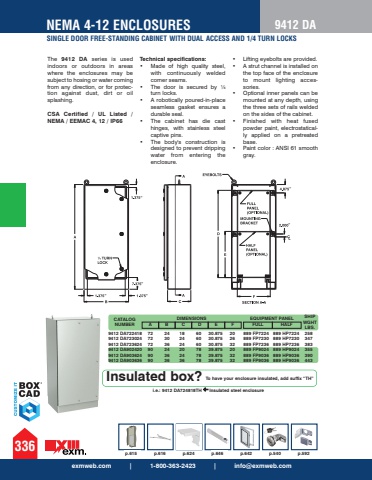

%u201d%u201d%u201d %u201d%u201d%u201dNEMA 4-12 ENCLOSURESSINGLE DOOR FREE-STANDING CABINET WITH DUAL ACCESS AND 1/4 TURN LOCKS9412 DAThe 9412 DA series is used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing.CSA Certified / UL Listed / NEMA / EEMAC 4, 12 / IP66 Technical specifications: %u2022 Made of high quality steel,with continuously weldedcorner seams.%u2022 The door is secured by %u00bcturn locks.%u2022 A robotically poured-in-placeseamless gasket ensures adurable seal.%u2022 The cabinet has die casthinges, with stainless steelcaptive pins.%u2022 The body's construction isdesigned to prevent drippingwater from entering theenclosure.%u2022 Lifting eyebolts are provided.%u2022 A strut channel is installed onthe top face of the enclosureto mount lighting accessories.%u2022 Optional inner panels can bemounted at any depth, usingthe three sets of rails weldedon the sides of the cabinet.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : ANSI 61 smoothgray.CATALOG NUMBER A B C D E FDIMENSIONS SHIPWGHTLBS. FULL HALFEQUIPMENT PANEL9412 DA722418 72 24 18 60 30.875 20 889 FP7224 889 HP7224 258 9412 DA723024 72 30 24 60 30.875 26 889 FP7230 889 HP7230 347 9412 DA723624 72 36 24 60 30.875 32 889 FP7236 889 HP7236 383 9412 DA902420 90 24 20 78 39.875 20 889 FP9024 889 HP9024 355 9412 DA903624 90 36 24 78 39.875 32 889 FP9036 889 HP9036 390 9412 DA903636 90 36 36 78 39.875 32 889 FP9036 889 HP9036 443Insulated box? To have your enclosure insulated, add suffix %u201cTH%u201di.e.: 9412 DA724818TH %uf0b0 Insulated steel enclosurep.615 p.616 p.624 p.646 p.642 p.540 p.592exmweb.com | 1-800-363-2423 | [email protected]
