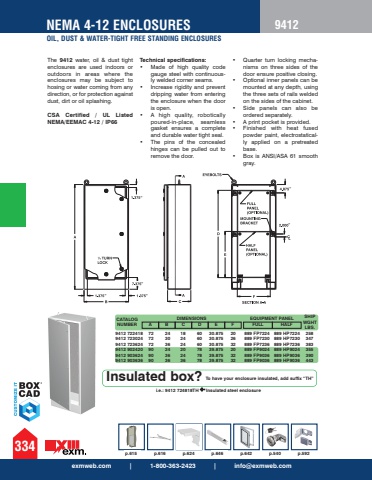

%u201d%u201d%u201d %u201d%u201d%u201dNEMA 4-12 ENCLOSURESOIL, DUST & WATER-TIGHT FREE STANDING ENCLOSURES9412The 9412 water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66 Technical specifications: %u2022 Made of high quality codegauge steel with continuously welded corner seams.%u2022 Increase rigidity and preventdripping water from enteringthe enclosure when the dooris open.%u2022 A high quality, roboticallypoured-in-place, seamlessgasket ensures a completeand durable water tight seal.%u2022 The pins of the concealedhinges can be pulled out toremove the door.%u2022 Quarter turn locking mechanisms on three sides of thedoor ensure positive closing.%u2022 Optional inner panels can bemounted at any depth, usingthe three sets of rails weldedon the sides of the cabinet.%u2022 Side panels can also beordered separately.%u2022 A print pocket is provided.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Box is ANSI/ASA 61 smoothgray.CATALOG NUMBER A B C D E FDIMENSIONS SHIPWGHTLBS. FULL HALFEQUIPMENT PANEL9412 722418 72 24 18 60 30.875 20 889 FP7224 889 HP7224 258 9412 723024 72 30 24 60 30.875 26 889 FP7230 889 HP7230 347 9412 723624 72 36 24 60 30.875 32 889 FP7236 889 HP7236 383 9412 902420 90 24 20 78 39.875 20 889 FP9024 889 HP9024 355 9412 903624 90 36 24 78 39.875 32 889 FP9036 889 HP9036 390 9412 903636 90 36 36 78 39.875 32 889 FP9036 889 HP9036 443Insulated box? To have your enclosure insulated, add suffix %u201cTH%u201di.e.: 9412 724818TH %uf0b0 Insulated steel enclosurep.615 p.616 p.624 p.646 p.642 p.540 p.592exmweb.com | 1-800-363-2423 | [email protected]
