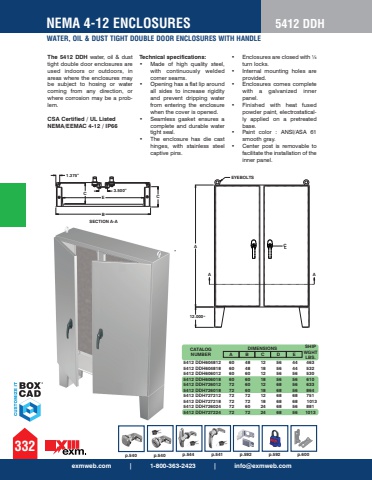

p.592 p.592 p.600A B C D EDIMENSIONSThe 5412 DDH water, oil & dust tight double door enclosures are used indoors or outdoors, in areas where the enclosures may be subject to hosing or water coming from any direction, or where corrosion may be a problem. CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66 Technical specifications: %u2022 Made of high quality steel,with continuously weldedcorner seams.%u2022 Opening has a flat lip aroundall sides to increase rigidityand prevent dripping waterfrom entering the enclosurewhen the cover is opened.%u2022 Seamless gasket ensures acomplete and durable watertight seal.%u2022 The enclosure has die casthinges, with stainless steelcaptive pins.%u2022 Enclosures are closed with %u00bcturn locks.%u2022 Internal mounting holes areprovided.%u2022 Enclosures comes completewith a galvanized innerpanel.%u2022 Finished with heat fusedpowder paint, electrostatically applied on a pretreatedbase.%u2022 Paint color : ANSI/ASA 61smooth gray.%u2022 Center post is removable tofacilitate the installation of theinner panel.CATALOG NUMBERSHIP WGHT LBS.CLC3.5001.375A AA12.000BECSECTION A-AEYEBOLTS %u201d%u201d%u201d5412 DDH604812 60 48 12 56 44 463 5412 DDH604818 60 48 18 56 44 532 5412 DDH606012 60 60 12 56 56 530 5412 DDH606018 60 60 18 56 56 610 5412 DDH726012 72 60 12 68 56 633 5412 DDH726018 72 60 18 68 56 864 5412 DDH727212 72 72 12 68 68 751 5412 DDH727218 72 72 18 68 68 1013 5412 DDH726024 72 60 24 68 56 881 5412 DDH727224 72 72 24 68 56 1013 NEMA 4-12 ENCLOSURESWATER, OIL & DUST TIGHT DOUBLE DOOR ENCLOSURES WITH HANDLE5412 DDH332exmweb.com | 1-800-363-2423 | [email protected] p.540 p.544 p.541
