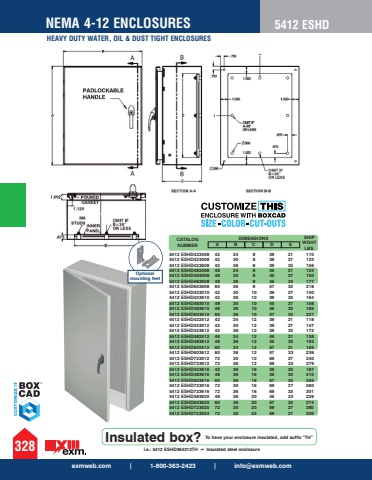

NEMA 4-12 ENCLOSURES 5412 ESHDCATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESHD422408 42 24 8 39 21 110 5412 ESHD423008 42 30 8 39 27 133 5412 ESHD423608 42 36 8 39 33 156 5412 ESHD482408 48 24 8 45 21 124 5412 ESHD483008 48 30 8 45 27 150 5412 ESHD483608 48 36 8 45 33 177 5412 ESHD603608 60 36 8 57 33 218 5412 ESHD423010 42 30 10 39 27 140 5412 ESHD423610 42 36 10 39 33 164 5412 ESHD483010 48 30 10 45 27 158 5412 ESHD483610 48 36 10 45 33 185 5412 ESHD603610 60 36 10 57 33 227 5412 ESHD422412 42 24 12 39 21 118 5412 ESHD423012 42 30 12 39 27 147 5412 ESHD423612 42 36 12 39 33 172 5412 ESHD482412 48 24 12 45 21 138 5412 ESHD483612 48 36 12 45 33 193 5412 ESHD602412 60 24 12 57 21 169 5412 ESHD603612 60 36 12 57 33 236 5412 ESHD723012 72 30 12 69 27 240 5412 ESHD723612 72 36 12 69 33 279 5412 ESHD423616 42 36 16 39 33 187 5412 ESHD483616 48 36 16 45 33 210 5412 ESHD603616 60 36 16 57 33 255 5412 ESHD723016 72 30 16 69 27 260 5412 ESHD723616 72 36 16 69 33 301 5412 ESHD483620 48 36 20 45 33 226 5412 ESHD603620 60 36 20 57 33 274 5412 ESHD723020 72 30 20 69 27 280 5412 ESHD723024 72 30 24 69 27 300 Insulated box? To have your enclosure insulated, add suffix %u201cTH%u201dOptional mounting feeti.e.: 5412 ESHD364212TH %uf0b0 Insulated steel enclosureexmweb.com | 1-800-363-2423 | [email protected] DUTY WATER, OIL & DUST TIGHT ENCLOSURES
