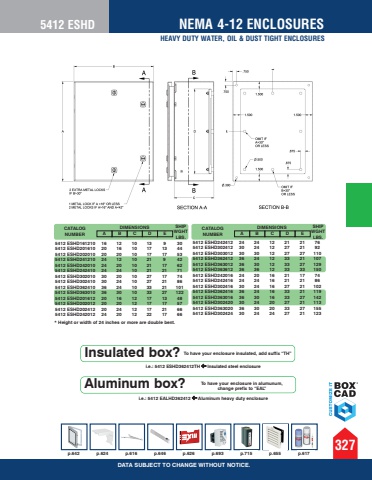

p.642 p.624 p.616 p.646 p.626 p.693 p.715 p.655 p.617i.e.: 5412 ESHD362412TH %uf0b0 Insulated steel enclosureInsulated box? To have your enclosure insulated, add suffix %u201cTH%u201di.e.: 5412 EALHD362412 %uf0b0 Aluminum heavy duty enclosureTo have your enclosure in alumunum, Aluminum box? change prefix to %u201cEAL%u201d327DATA SUBJECT TO CHANGE WITHOUT NOTICE.5412 ESHD NEMA 4-12 ENCLOSURESHEAVY DUTY WATER, OIL & DUST TIGHT ENCLOSURES* Height or width of 24 inches or more are double bent.CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESHD161210 16 12 10 13 9 30 5412 ESHD201610 20 16 10 17 13 44 5412 ESHD202010 20 20 10 17 17 53 5412 ESHD241210 24 12 10 21 9 42 5412 ESHD242010 24 20 10 21 17 62 5412 ESHD242410 24 24 10 21 21 71 5412 ESHD302010 30 20 10 27 17 74 5412 ESHD302410 30 24 10 27 21 86 5412 ESHD362410 36 24 10 33 21 101 5412 ESHD363010 36 30 10 33 27 122 5412 ESHD201612 20 16 12 17 13 48 5412 ESHD202012 20 20 12 17 17 57 5412 ESHD202412 20 24 12 17 21 66 5412 ESHD242012 24 20 12 22 17 66 5412 ESHD242412 24 24 12 21 21 76 5412 ESHD302412 30 24 12 27 21 92 5412 ESHD303012 30 30 12 27 27 110 5412 ESHD362412 36 24 12 33 21 107 5412 ESHD363012 36 30 12 33 27 129 5412 ESHD363612 36 36 12 33 33 150 5412 ESHD242016 24 20 16 21 17 74 5412 ESHD242416 24 24 16 21 21 86 5412 ESHD302416 30 24 16 27 21 102 5412 ESHD362416 36 24 16 33 21 119 5412 ESHD363016 36 30 16 33 27 142 5412 ESHD302420 30 24 20 27 21 113 5412 ESHD363020 36 30 20 33 27 155 5412 ESHD302424 30 24 24 27 21 123 CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.
