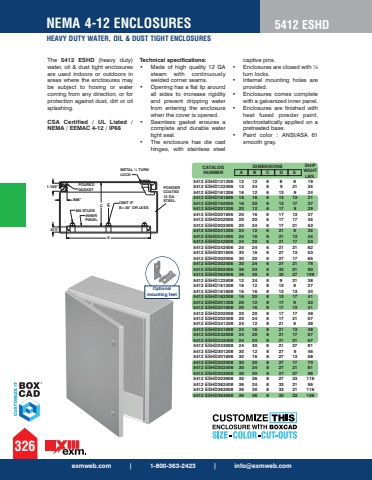

The 5412 ESHD (heavy duty) water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. CSA Certified / UL Listed / NEMA / EEMAC 4-12 / IP66Technical specifications: %u2022 Made of high quality 12 GA steam with continuously welded corner seams. %u2022 Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. %u2022 Seamless gasket ensures a complete and durable water tight seal. %u2022 The enclosure has die cast hinges, with stainless steel captive pins. %u2022 Enclosures are closed with %u00bc turn locks. %u2022 Internal mounting holes are provided. %u2022 Enclosures comes complete with a galvanized inner panel. %u2022 Enclosures are finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.CATALOG NUMBER A B C D EDIMENSIONS SHIP WGHT LBS.5412 ESHD121206 12 12 6 8 8 19 5412 ESHD122406 12 24 6 9 21 35 5412 ESHD161206 16 12 6 13 9 24 5412 ESHD161606 16 16 6 13 13 31 5412 ESHD162006 16 20 6 13 17 37 5412 ESHD201206 20 12 6 17 9 29 5412 ESHD201606 20 16 6 17 13 37 5412 ESHD202006 20 20 6 17 17 45 5412 ESHD202406 20 24 6 17 21 53 5412 ESHD241206 24 12 6 21 9 35 5412 ESHD241606 24 16 6 21 13 44 5412 ESHD242006 24 20 6 21 17 53 5412 ESHD242406 24 24 6 21 21 62 5412 ESHD301606 30 16 6 27 13 53 5412 ESHD302006 30 20 6 27 17 65 5412 ESHD302406 30 24 6 27 21 76 5412 ESHD362406 36 24 6 33 21 90 5412 ESHD363006 36 30 6 33 27 109 5412 ESHD122408 12 24 8 9 21 38 5412 ESHD161208 16 12 8 13 9 27 5412 ESHD161608 16 16 8 13 13 34 5412 ESHD162008 16 20 8 13 17 41 5412 ESHD201208 20 12 8 17 9 33 5412 ESHD201608 20 16 8 17 13 41 5412 ESHD202008 20 20 8 17 17 49 5412 ESHD202408 20 24 8 17 21 57 5412 ESHD241208 24 12 8 21 9 38 5412 ESHD241608 24 16 8 21 13 48 5412 ESHD242008 24 20 8 21 17 57 5412 ESHD242408 24 24 8 21 21 67 5412 ESHD243008 24 30 8 21 27 81 5412 ESHD301208 30 12 8 27 9 46 5412 ESHD301608 30 16 8 27 13 58 5412 ESHD302008 30 20 8 27 17 70 5412 ESHD302408 30 24 8 27 21 81 5412 ESHD303008 30 30 8 27 27 98 5412 ESHD303608 30 36 8 27 33 116 5412 ESHD362408 36 24 8 33 21 95 5412 ESHD363008 36 30 8 33 21 116 5412 ESHD363608 36 36 8 33 33 136 Optional mounting feetexmweb.com | 1-800-363-2423 | [email protected] 4-12 ENCLOSURESHEAVY DUTY WATER, OIL & DUST TIGHT ENCLOSURES5412 ESHD1.150%u201dMETAL %u00bc TURNLOCKPOUREDGASKET.875%u201dE.906%u201dM8 STUDSINNERPANELC OMIT IFB=30%u201d OR LESS CLPOWDER COATED12 GA STEEL
