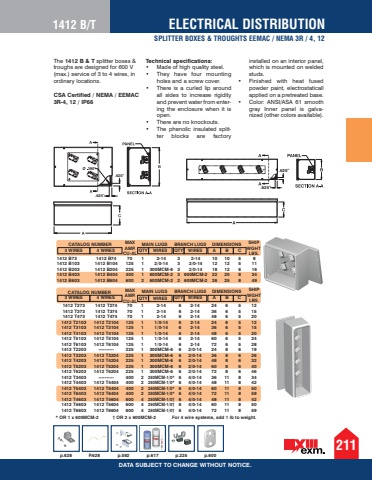

211DATA SUBJECT TO CHANGE WITHOUT NOTICE.1412 B/T ELECTRICAL DISTRIBUTIONThe 1412 B & T splitter boxes & troughs are designed for 600 V (max.) service of 3 to 4 wires, in ordinary locations. CSA Certified / NEMA / EEMAC 3R-4, 12 / IP66 Technical specifications:%u2022 Made of high quality steel.%u2022 They have four mountingholes and a screw cover.%u2022 There is a curled lip aroundall sides to increase rigidityand prevent water from entering the enclosure when it isopen.%u2022 There are no knockouts.%u2022 The phenolic insulated splitter blocks are factory installed on an interior panel, which is mounted on welded studs. %u2022 Finished with heat fusedpowder paint, electrostaticallapplied on a pretreated base.%u2022 Color: ANSI/ASA 61 smoothgray Inner panel is galvanized (other colors available)..625%u201d.625%u201d%u201d .625%u201d.625%u201dp.628 P.628 p.592 p.617 p.225 p.600SPLITTER BOXES & TROUGHTS EEMAC / NEMA 3R / 4, 12CATALOG NUMBER3 WIRES 4 WIRESCATALOG NUMBER3 WIRES 4 WIRES1412 B73 1412 B74 70 1 2-14 3 2-14 10 10 5 8 1412 B103 1412 B104 125 1 2/0-14 3 2/0-14 12 12 5 11 1412 B203 1412 B204 225 1 300MCM-6 3 2/0-14 18 12 6 16 1412 B403 1412 B404 400 1 600MCM-2 3 600MCM-2 22 20 8 34 1412 B603 1412 B604 600 2 600MCM-2 2 600MCM-2 26 25 8 491412 T273 1412 T274 70 1 2-14 6 2-14 24 6 5 12 1412 T373 1412 T374 70 1 2-14 6 2-14 36 6 5 15 1412 T473 1412 T474 70 1 2-14 6 2-14 48 6 5 20 1412 T2103 1412 T2104 125 1 1/0-14 6 2-14 24 6 5 12 1412 T3103 1412 T3104 125 1 1/0-14 6 2-14 36 6 5 15 1412 T4103 1412 T4104 125 1 1/0-14 6 2-14 48 6 5 20 1412 T5103 1412 T5104 125 1 1/0-14 6 2-14 60 6 5 24 1412 T6103 1412 T6104 125 1 1/0-14 6 2-14 72 6 5 28 1412 T2203 ---------- 225 1 300MCM-6 6 2/0-14 24 8 6 19 1412 T3203 1412 T3204 225 1 300MCM-6 6 2/0-14 36 8 6 26 1412 T4203 1412 T4204 225 1 300MCM-6 6 2/0-14 48 8 6 32 1412 T5203 1412 T5204 225 1 300MCM-6 6 2/0-14 60 8 6 40 1412 T6203 1412 T6204 225 1 300MCM-6 6 2/0-14 72 8 6 46 1412 T3403 ---------- 400 2 250MCM-1/0* 6 4/0-14 36 11 8 34 1412 T4403 1412 T4404 400 2 250MCM-1/0* 6 4/0-14 48 11 8 42 1412 T5403 1412 T5404 400 2 250MCM-1/0* 6 4/0-14 60 11 8 50 1412 T6403 1412 T6404 400 2 250MCM-1/0* 6 4/0-14 72 11 8 59 1412 T4603 1412 T4604 600 4 250MCM-1/0%u2020 6 4/0-14 48 11 8 42 1412 T5603 1412 T5604 600 4 250MCM-1/0%u2020 6 4/0-14 60 11 8 50 1412 T6603 1412 T6604 600 4 250MCM-1/0%u2020 6 4/0-14 72 11 8 59 A B CDIMENSIONS SHIP WGHT LBS. QTY WIRESMAX AMP. CU-ALMAIN LUGS BRANCH LUGSMAX AMP. CU-ALSHIP WGHT LBS.MAIN LUGS BRANCH LUGS DIMENSIONSQTY WIRESQTY WIRES QTY WIRES A B C* OR 1 x 600MCM-2 %u2020 OR 2 x 600MCM-2 For 4 wire systems, add 1 lb to weight.
