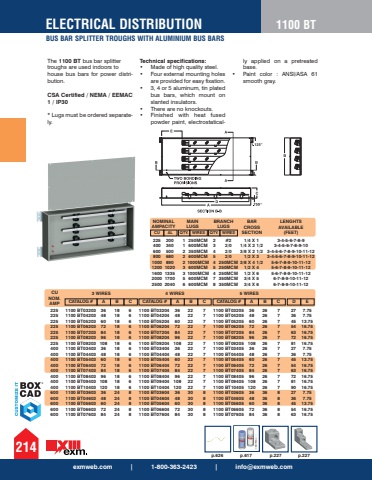

p.626 p.617 p.227 p.227exmweb.com | 1-800-363-2423 | [email protected] DISTRIBUTION 1100 BTBUS BAR SPLITTER TROUGHS WITH ALUMINIUM BUS BARS%u201d%u201dThe 1100 BT bus bar splitter troughs are used indoors to house bus bars for power distribution. CSA Certified / NEMA / EEMAC 1 / IP30 * Lugs must be ordered separately.Technical specifications:%u2022 Made of high quality steel. %u2022 Four external mounting holes are provided for easy fixation. %u2022 3, 4 or 5 aluminum, tin plated bus bars, which mount on slanted insulators. %u2022 There are no knockouts. %u2022 Finished with heat fused powder paint, electrostatically applied on a pretreated base. %u2022 Paint color : ANSI/ASA 61 smooth gray.NOMINAL AMPACITYCU AL QTY. WIRESMAIN LUGSBRANCH LUGSBAR CROSS SECTIONLENGHTS AVAILABLE (FEET)225 200 1 250MCM 2 #2 1/4 X 1 3-4-5-6-7-8-9 400 340 1 600MCM 3 2/0 1/4 X 2 1/2 3-4-5-6-7-8-9-10 600 500 2 350MCM 4 2/0 3/8 X 2 1/2 3-4-5-6-7-8-9-10-11-12 800 680 2 600MCM 5 2/0 1/2 X 3 3-4-5-6-7-8-9-10-11-12 1000 890 2 1000MCM 4 250MCM 3/8 X 4 1/2 5-6-7-8-9-10-11-12 1200 1020 3 600MCM 5 250MCM 1/2 X 4 5-6-7-8-9-10-11-12 1600 1335 3 1000MCM 4 250MCM 1/2 X 6 5-6-7-8-9-10-11-12 2000 1700 5 600MCM 7 350MCM 3/4 X 5 6-7-8-9-10-11-12 2500 2040 6 600MCM 8 350MCM 3/4 X 6 6-7-8-9-10-11-12QTY. WIRESCATALOG # A B CCU NOM. AMP D E3 WIRES 4 WIRES 5 WIRESCATALOG # A B C CATALOG # A B C225 1100 BT03203 36 18 6 1100 BT03204 36 22 7 1100 BT03205 36 26 7 27 7.75 225 1100 BT04203 48 18 6 1100 BT04204 48 22 7 1100 BT04205 48 26 7 36 7.75 225 1100 BT05203 60 18 6 1100 BT05204 60 22 7 1100 BT05205 60 26 7 45 13.75 225 1100 BT06203 72 18 6 1100 BT06204 72 22 7 1100 BT06205 72 26 7 54 16.75 225 1100 BT07203 84 18 6 1100 BT07204 84 22 7 1100 BT07205 84 26 7 63 16.75 225 1100 BT08203 96 18 6 1100 BT08204 96 22 7 1100 BT08205 96 26 7 72 16.75 225 1100 BT09203 108 18 6 1100 BT09204 108 22 7 1100 BT09205 108 26 7 81 16.75 400 1100 BT03403 36 18 6 1100 BT03404 36 22 7 1100 BT03405 36 26 7 27 7.75 400 1100 BT04403 48 18 6 1100 BT04404 48 22 7 1100 BT04405 48 26 7 36 7.75 400 1100 BT05403 60 18 6 1100 BT05404 60 22 7 1100 BT05405 60 26 7 45 13.75 400 1100 BT06403 72 18 6 1100 BT06404 72 22 7 1100 BT06405 72 26 7 54 16.75 400 1100 BT07403 84 18 6 1100 BT07404 84 22 7 1100 BT07405 84 26 7 63 16.75 400 1100 BT08403 96 18 6 1100 BT08404 96 22 7 1100 BT08405 96 26 7 72 16.75 400 1100 BT09403 108 18 6 1100 BT09404 108 22 7 1100 BT09405 108 26 7 81 16.75 400 1100 BT10403 120 18 6 1100 BT10404 120 22 7 1100 BT10405 120 26 7 90 16.75 600 1100 BT03603 36 24 8 1100 BT03604 36 30 8 1100 BT03605 36 36 8 27 7.75 600 1100 BT04603 48 24 8 1100 BT04604 48 30 8 1100 BT04605 48 36 8 36 7.75 600 1100 BT05603 60 24 8 1100 BT05604 60 30 8 1100 BT05605 60 36 8 45 13.75 600 1100 BT06603 72 24 8 1100 BT06604 72 30 8 1100 BT06605 72 36 8 54 16.75 600 1100 BT07603 84 24 8 1100 BT07604 84 30 8 1100 BT07605 84 36 8 63 16.75
